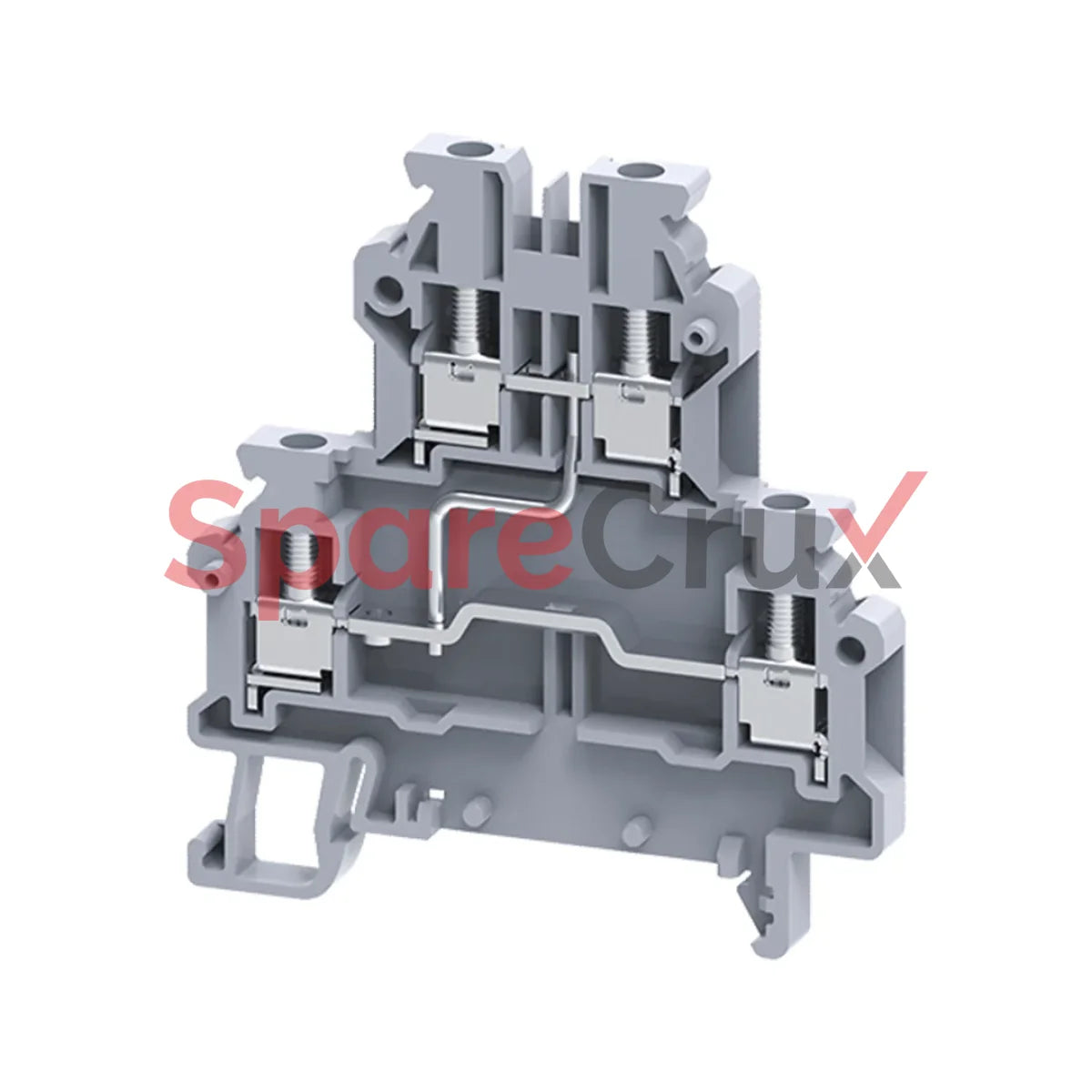

ODL2.5A(I.S) | CONNECTWELL | 2.5 sq.mm 2 Level Offset Internally Shorted Stackable Type Terminal Block in Grey
₹ 34.72
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
ODL2.5A(I.S) | CONNECTWELL | 2.5 sq.mm 2 Level Offset Internally Sh...
Manufacturer Part Number (MPN)
ODL2.5A(I.S)
Original Equipment Manufacturer
CONNECTWELL
Description
Description
ODL2.5A(I.S) internally shorted terminal block , the top level is offset from the bottom level by half the thickness of the terminal block. this creates better access for the bottom level screw while the wires are connected. It is recommended to use end plates at both ends of the assembled ODL2.5A(I.S) sets for flat alignment to enable the effective use of end clamp. These are ideal for use in applications requiring high density wiring. Interconnection/shorting is possible with standard push in links.
Technical Data
| Rated Voltage | 800 V |
| Rated Current | 24 A |
| Tightening Torque | 0.4 Nm |
| Housing Material | Polyamide |
| Product Function | Double Level |
| Wire Entry Orientation | side |
| Mounting Possibility | DIN 35/DIN 35-15 Rail |
| Operated by | screw driver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
