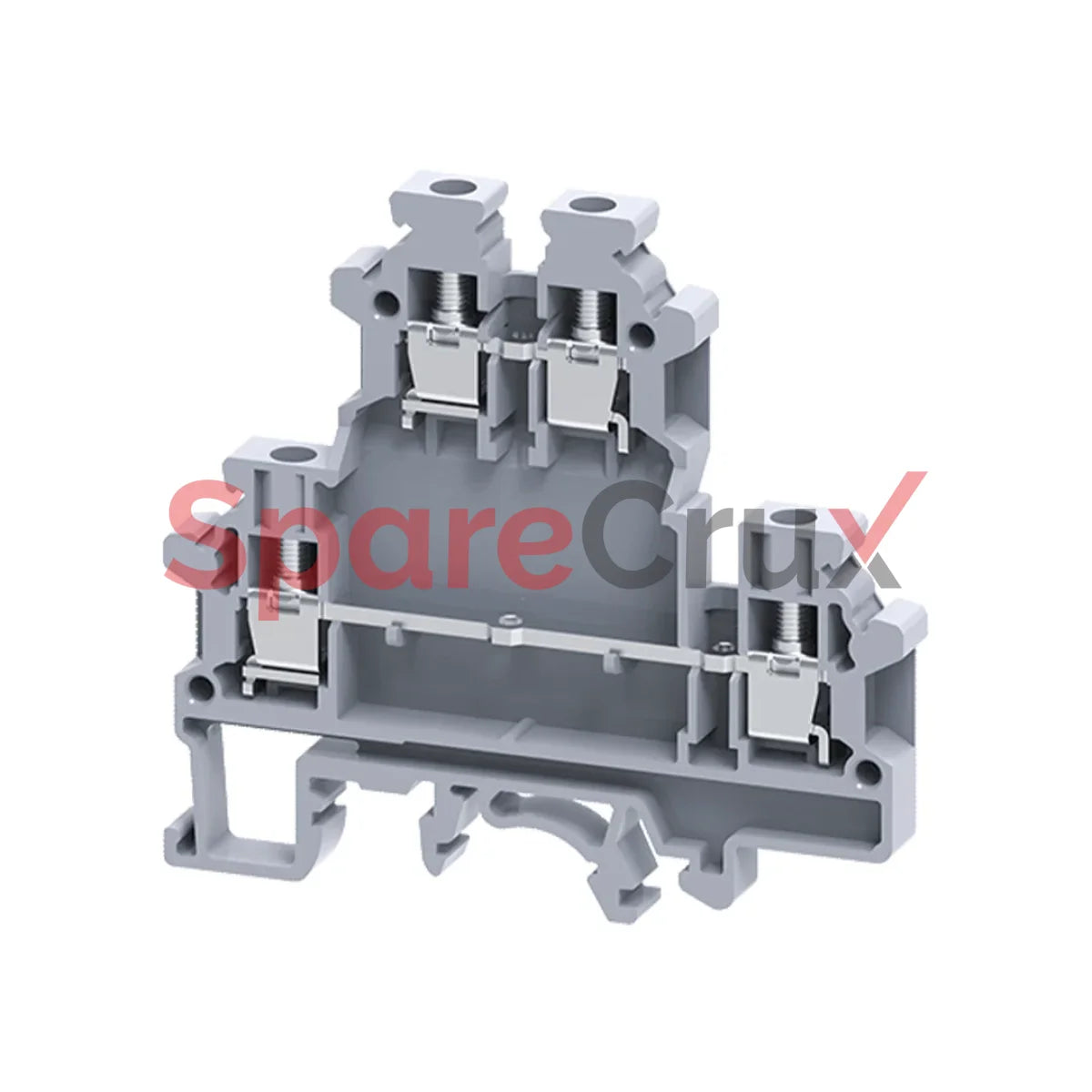

ODL4U | CONNECTWELL | 4 sq.mm Offset Double Level Terminal Block in Grey
₹ 27.76
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
ODL4U | CONNECTWELL | 4 sq.mm Offset Double Level Terminal Block in...
Manufacturer Part Number (MPN)
ODL4U
Original Equipment Manufacturer
CONNECTWELL
Description
Description
ODL4U Terminal Block , the top level is offset from the bottom level by half the thickness of the terminal block. this creates better access for the bottom level screw while the wires are connected. It is recommended to use End Plates at both ends of the assembled ODL4U sets for flat alignment to enable the effective use of end clamp. These are ideal for use in applications requiring high density wiring. Interconnection/shorting is possible at both levels.
Technical Data
| Rated Voltage | 800 V |
| Rated Current | 32 A |
| Tightening Torque | 0.5 Nm |
| Housing Material | Polyamide |
| Product Function | Double Level |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M3 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 6 KV |
| Pollution Degree | 3 |
