SPARECRUX is NOT an authorized distributor for BOSCH REXROTH

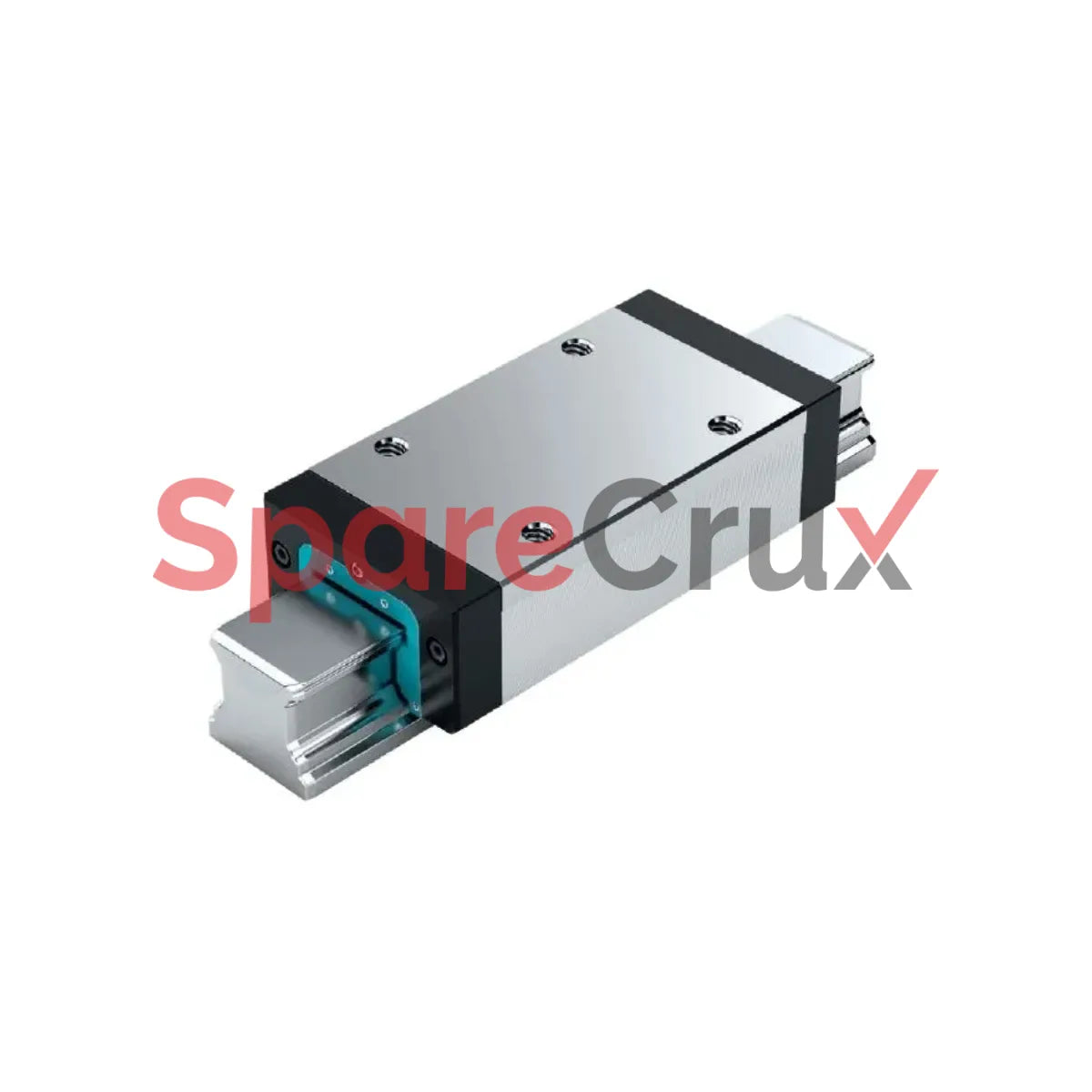

R201221333 | BOSCH REXROTH | Ball Runner Block Resist NR

₹ 15,150.02

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

R201221333

Original Equipment Manufacturer

BOSCH REXROTH

Description
Specification Details
Brand Bosch-Rexroth
Product Type Linear carriages
Size [mm] 25
Weight [kg] 0.705
Width A [mm] 48
Height H [mm] 36
Length B [mm] 107.9
E1 [mm] 35
E2 [mm] 50
Preload Class C1 - moderate preload
Accuracy Class H - high
Seal Type SS - standard seal, without ball chain
B1 [mm] 79.5
H1 [mm] 29.9
Mounting Thread S2 M6
T [mm] 60
A2 [mm] 23
H2 [mm] 24.25
N6 [mm] 15.2
S5 [mm] 7
Load Capacity C [N] 37,300
Load Capacity C0 [N] 52,500
Load Moment Mt [Nm] 530
Static Load Moment Mt0 [Nm] 750
Dynamic Longitudinal Moment Load ML [Nm] 530
Static Longitudinal Moment Load ML0 [Nm] 740
Temperature Range -10 to +100 °C
Material Carbon steel
Ball Chain Without chain
Maintenance & Lubrication Relubrication via lubrication nipple
