SPARECRUX is NOT an authorized distributor for SCHMERSAL

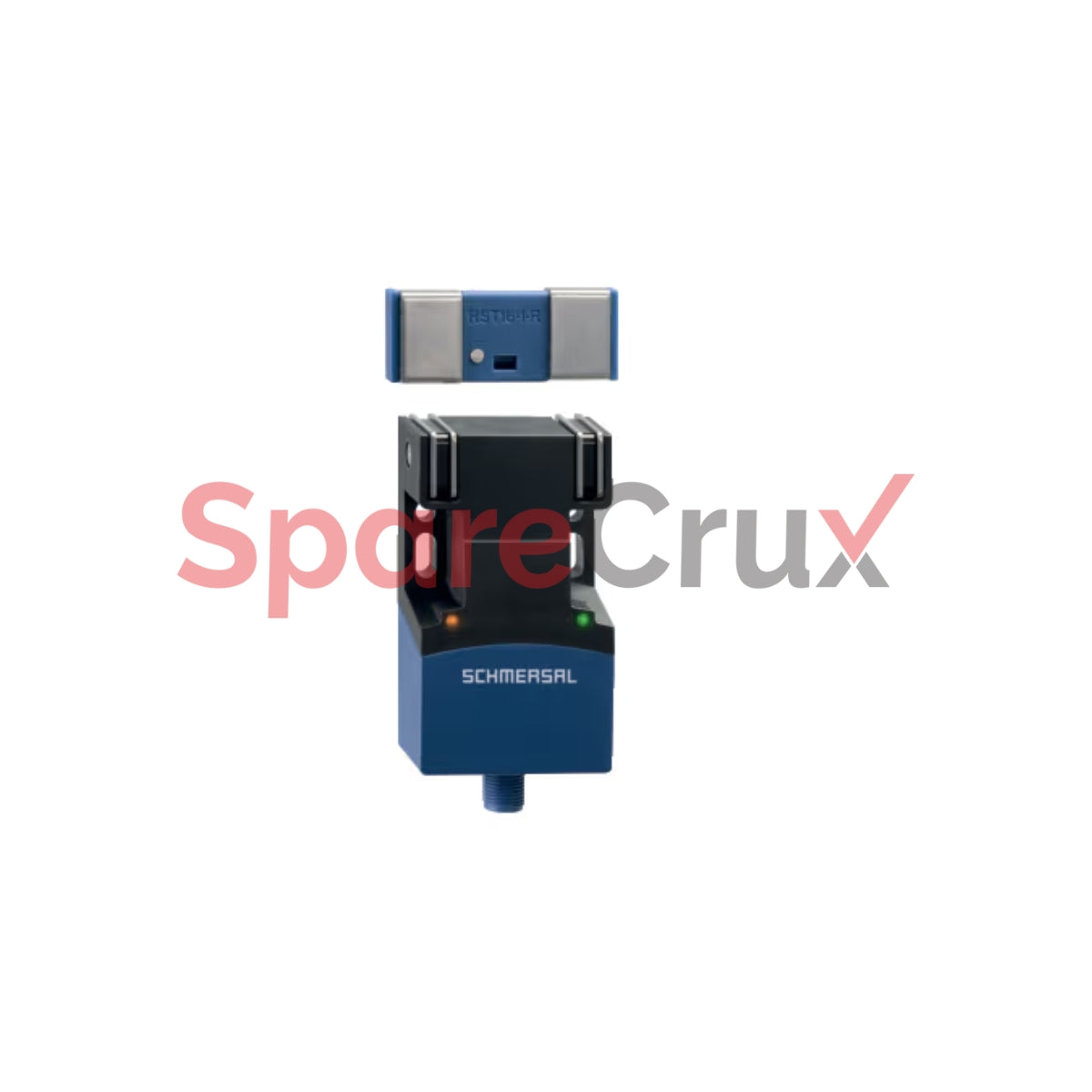

RSS16-D-R-STSH | SCHMERSAL | RFID Non-Contact Safety Switch

₹ 4,750.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

RSS16-D-R-STSH

Original Equipment Manufacturer

SCHMERSAL

Description
Attribute Details
Brand Schmersal
Model RSS16-D-R-ST8H
Part Number 103004338
Product Type RFID Safety Sensor
Technology RFID-coded non-contact safety switch
Coding Universal Coding
Latching Yes (magnetic latching)
Connection M12, 8-pin connector
Safety Category Cat. 4, PL e, SIL 3
Switching Distance (Sn) 15 mm
Assured ON Distance (Sao) 5 mm
Assured OFF Distance (Sar) 30 mm
Output Type 2 Safety Outputs + 1 Diagnostic Output
Supply Voltage 24 V DC
Housing Material Glass-fibre reinforced thermoplastic
Protection Rating IP65 / IP66 / IP67
Operating Temperature -28°C to +70°C
Dimensions 91 × 52 × 30 mm
Application Safety doors, guards, machine interlocks
