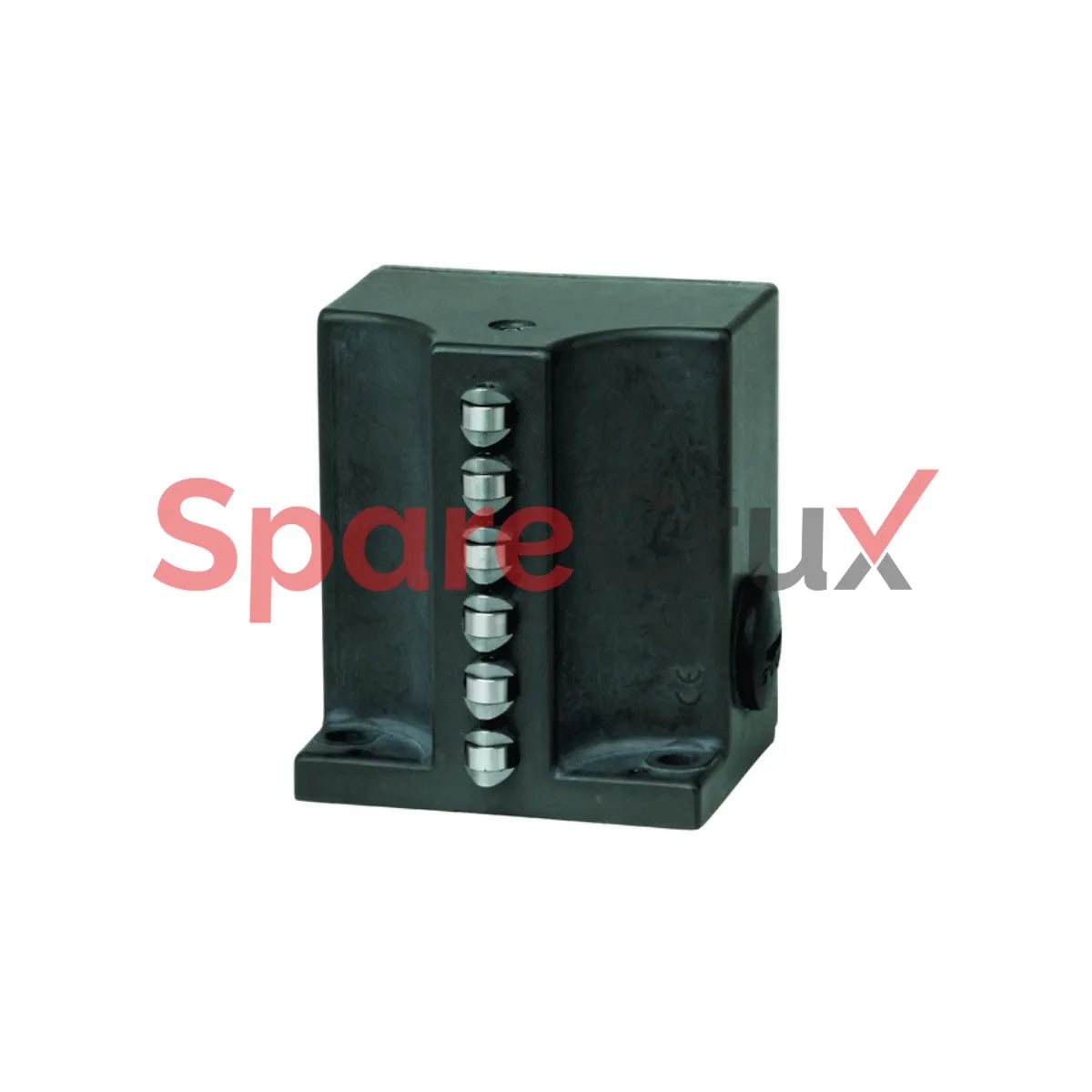

SN05R12-502-M | EUCHNER | Limit Switch

₹ 66,363.86

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

SN05R12-502-M

Original Equipment Manufacturer

EUCHNER

Description
Plunger Spacing 12 mm
Housing Design Upright, small flange
Degree of Protection IP67 (dust-tight and protected against immersion) according to IEC 60529
Switching Elements 5
NO Contacts 5
NC Contacts 5
Switching Principle Snap-action switching contact
Actuating Element Roller plunger
Actuating Force Minimum 20 N
Approach Speed 0.01 to 80 m/min
Electrical Ratings Utilization Category AC-12: 8 A at 250 V
Utilization Category DC-13: 6 A at 24 V
Utilization Category AC-15: 6 A at 230 V
Switching Current Minimum: 10 mA at DC 12 V
Thermal Rated Current: 8 A
Rated Insulation Voltage: 250 V
Rated Impulse Voltage: 2.5 kV
Connection Type 2 x M20 x 1.5
EUCHNER

SN05R12-502-M | EUCHNER | Limit Switch

₹ 66,363.86
Plunger Spacing 12 mm
Housing Design Upright, small flange
Degree of Protection IP67 (dust-tight and protected against immersion) according to IEC 60529
Switching Elements 5
NO Contacts 5
NC Contacts 5
Switching Principle Snap-action switching contact
Actuating Element Roller plunger
Actuating Force Minimum 20 N
Approach Speed 0.01 to 80 m/min
Electrical Ratings Utilization Category AC-12: 8 A at 250 V
Utilization Category DC-13: 6 A at 24 V
Utilization Category AC-15: 6 A at 230 V
Switching Current Minimum: 10 mA at DC 12 V
Thermal Rated Current: 8 A
Rated Insulation Voltage: 250 V
Rated Impulse Voltage: 2.5 kV
Connection Type 2 x M20 x 1.5
