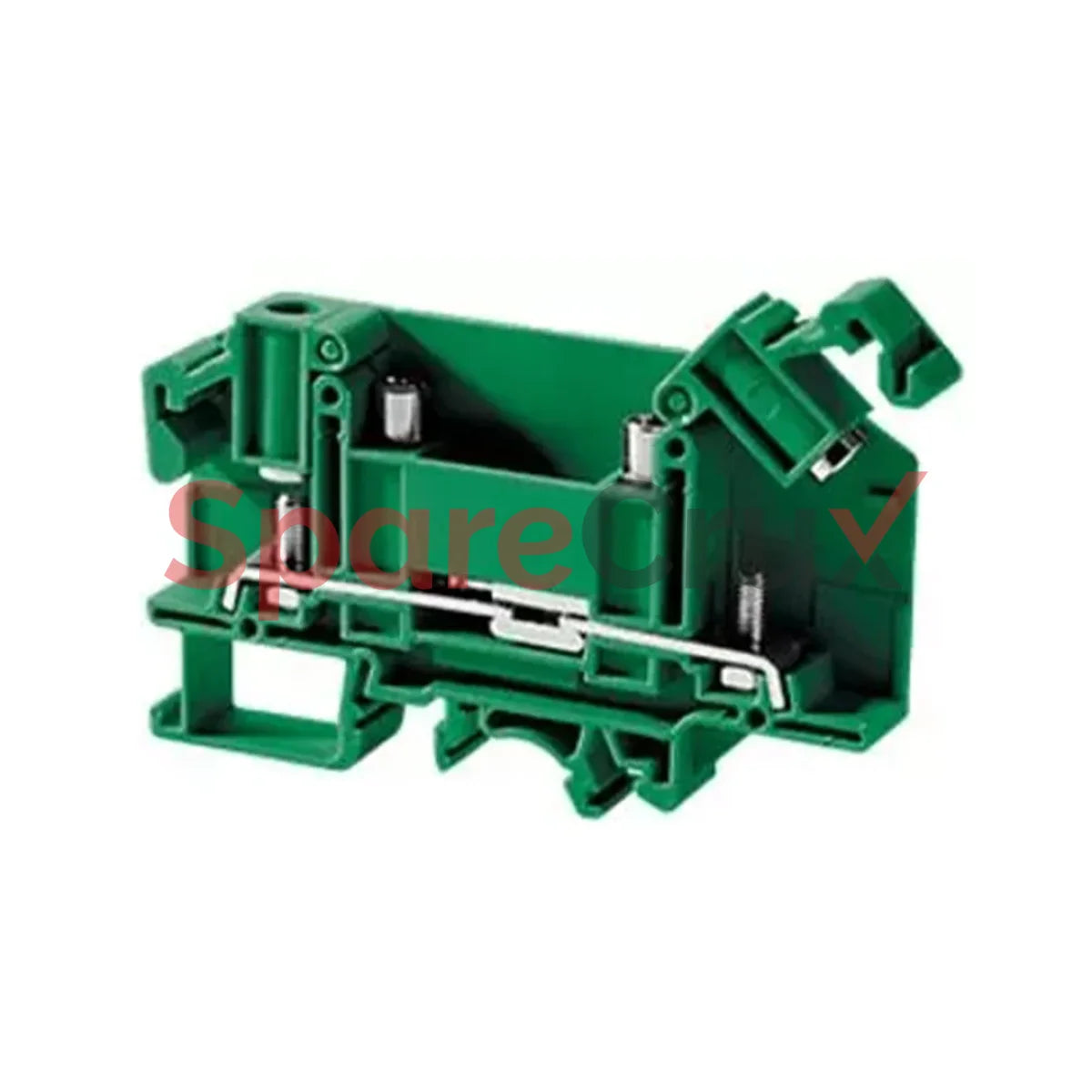

STH4DTGN | CONNECTWELL | 6 Sq.mm Hinge Type Disconnect And Test Terminal Block in Green Colour

₹ 73.92

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Manufacturer Part Number (MPN)

STH4DTGN

Original Equipment Manufacturer

CONNECTWELL

Description

These terminal blocks are preferred for applications where the connections are subjected to severe vibrations. The wire is crimped to ring / fork type lug (Ferrule) and is screwed on to flat current bar on the terminal block. The fastening nut always remains captive in the hinged plastic carrier. The hinged carrier should be lifted to insert the lugs and then snapped back into position. The nut can then be fastened to complete the connection. By the virtue of the hinged design the terminal blocks apart from shrouding the live parts, providing IP20 protection, saves considerable time in wiring. STH4DT Disconnect & Test terminal block is used for measuring, control and regulatory circuits. They provide a clear functional advantage for devices having utility instruments and associated transformers. seperated testing points facilitate insertion of test probes. Disconnection is achieved by means of slide link operated with a screwdriver.

Technical Data

Rated Voltage 1000 V
Rated Current 41 A
Tightening Torque 1.2 Nm
Housing Material Polyamide
Product Function Feed Through
Wire Entry Orientation Side Entry
Mounting Possibility DIN 32/DIN 35/DIN 35-15 Rail
Stud Size M4
Operated by Screwdriver
Rated Surge Voltage 8 KV
Pollution Degree 3
Sth4Dtgn | Connectwell 6 Sq.mm Hinge Type Disconnect And Test Terminal Block In Green Colour
CONNECTWELL

STH4DTGN | CONNECTWELL | 6 Sq.mm Hinge Type Disconnect And Test Terminal Block in Green Colour

₹ 73.92

These terminal blocks are preferred for applications where the connections are subjected to severe vibrations. The wire is crimped to ring / fork type lug (Ferrule) and is screwed on to flat current bar on the terminal block. The fastening nut always remains captive in the hinged plastic carrier. The hinged carrier should be lifted to insert the lugs and then snapped back into position. The nut can then be fastened to complete the connection. By the virtue of the hinged design the terminal blocks apart from shrouding the live parts, providing IP20 protection, saves considerable time in wiring. STH4DT Disconnect & Test terminal block is used for measuring, control and regulatory circuits. They provide a clear functional advantage for devices having utility instruments and associated transformers. seperated testing points facilitate insertion of test probes. Disconnection is achieved by means of slide link operated with a screwdriver.

Technical Data

Rated Voltage 1000 V
Rated Current 41 A
Tightening Torque 1.2 Nm
Housing Material Polyamide
Product Function Feed Through
Wire Entry Orientation Side Entry
Mounting Possibility DIN 32/DIN 35/DIN 35-15 Rail
Stud Size M4
Operated by Screwdriver
Rated Surge Voltage 8 KV
Pollution Degree 3
