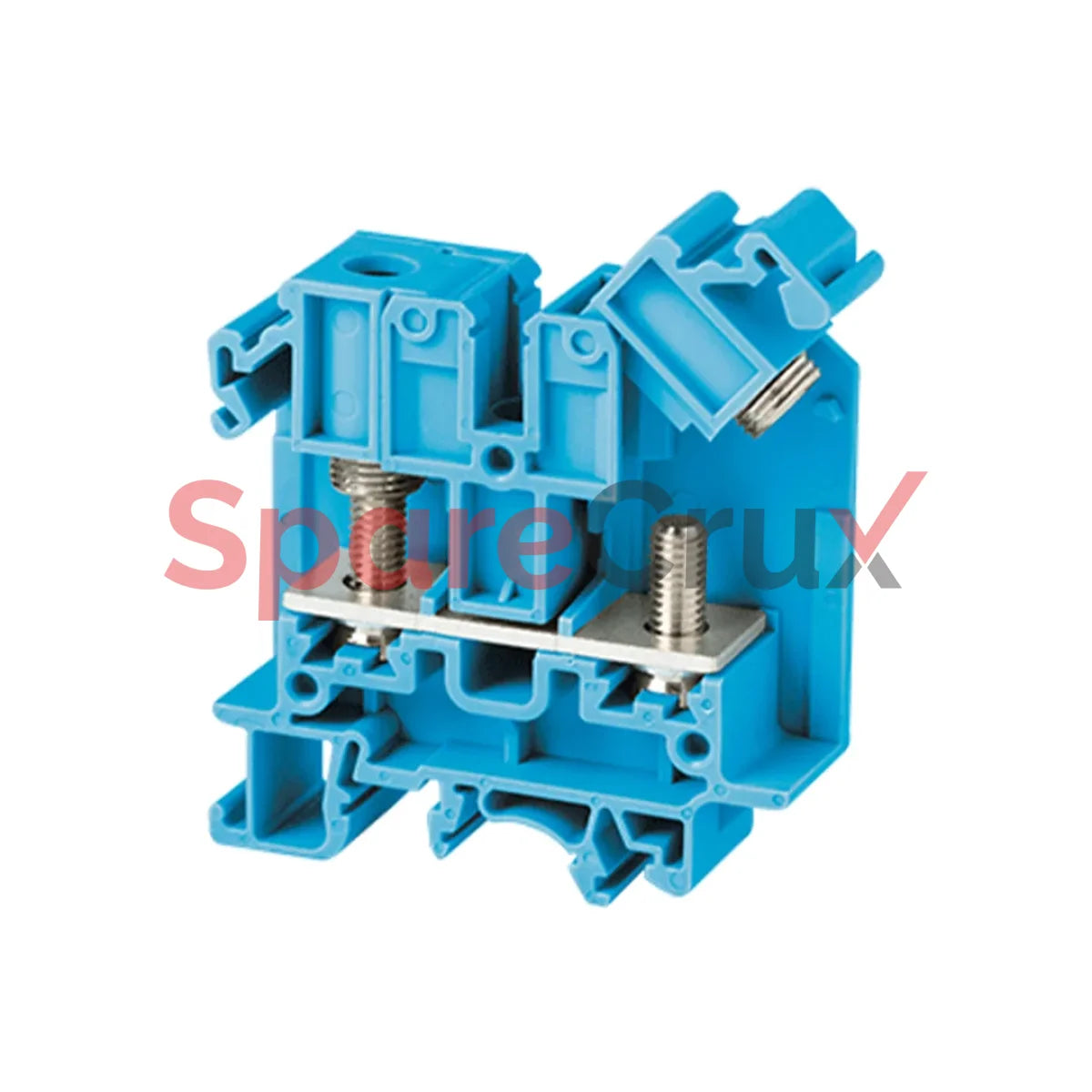

STH6BU | CONNECTWELL | 35 Sq.mm M6 Captive Nut Type Terminal Block in Blue Colour
₹ 108.40
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
STH6BU | CONNECTWELL | 35 Sq.mm M6 Captive Nut Type Terminal Block ...
Manufacturer Part Number (MPN)
STH6BU
Original Equipment Manufacturer
CONNECTWELL
Description
Description
These terminal blocks are preferred for applications where the connections are subjected to severe vibrations. The wire is crimped to ring / fork type Lug (Ferrule) and is screwed on to flat current bar on the terminal block. The fastening nut always remains captive in the hinged plastic carrier. The Hinged Carrier should be lifted to insert the lugs and then snapped back into position. The nut can then be fastened to complete the connection. By the virtue of the hinged design the Terminal Blocks apart from shrouding the live parts, providing IP20 protection, saves considerable time in wiring.
Technical Data
| Rated Voltage | 1000 V |
| Rated Current | 125 A |
| Tightening Torque | 3 Nm |
| Housing Material | Polyamide |
| Product Function | Feed Through |
| Wire Entry Orientation | Side entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M6 |
| Stud Size | M6 |
| Operated by | Screw Driver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
