SPARECRUX is NOT an authorized distributor for SELEC

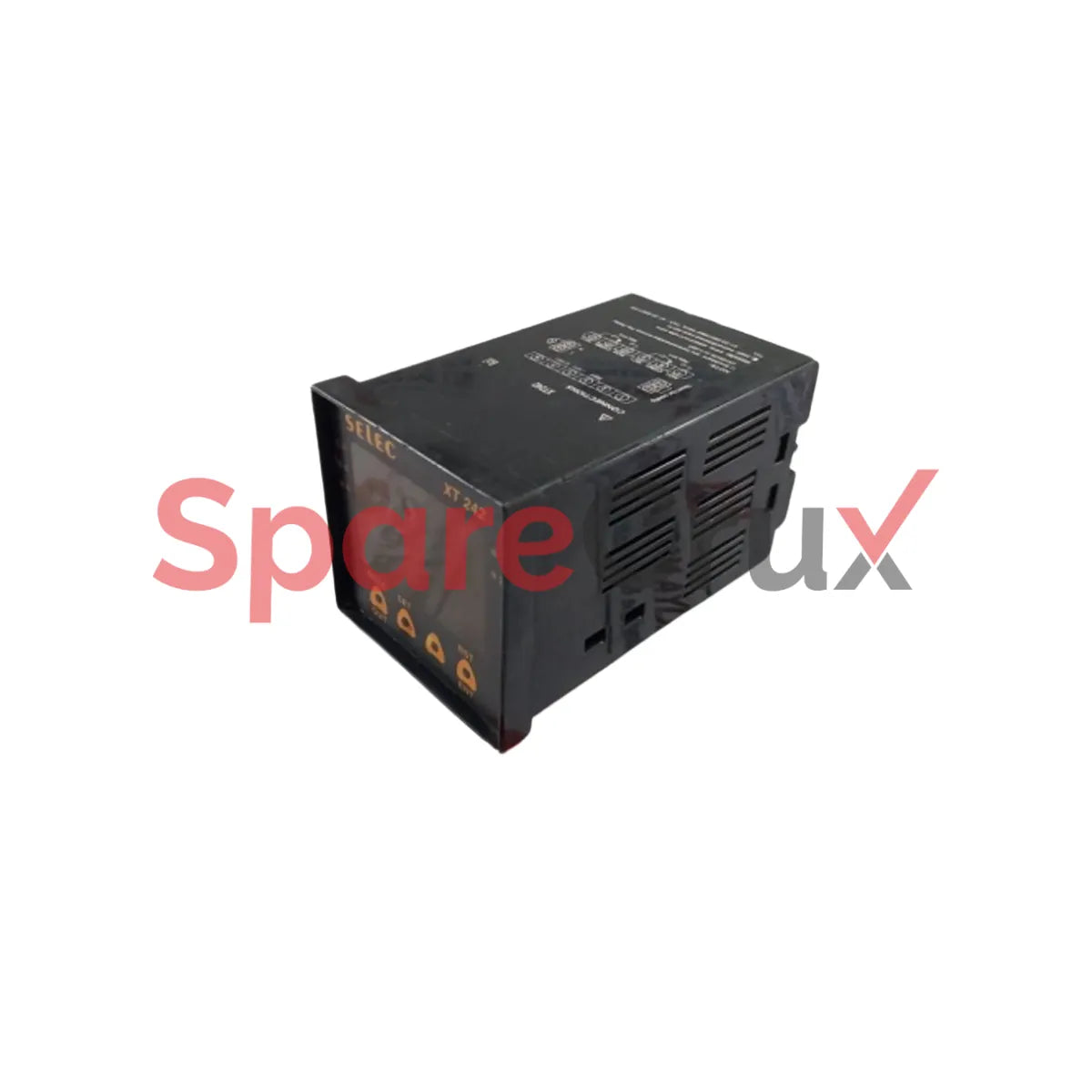

XT 242 | SELEC | Timers

₹ 8,328.33

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

XT 242

Original Equipment Manufacturer

SELEC

Description
Feature Specification
Display 7-segment LED, Dual Display (3+3 Digits)
Relay Contact 2 C/O (DPDT)
Relay Rating 5A @ 230V AC / 28V DC resistive load
Time Ranges 9.99 / 99.9 / 999 sec; 9.59 min:sec; 99.9 / 999 min; 9.59 hr:min; 99.9 / 999 hr
Operating Modes ON Delay, Interval, Cyclic ON First, Cyclic OFF First
Counting Direction Up / Down selectable
Reset Options Front panel, Remote, Power interruption (programmable)
Accuracy ±0.05% or 50 ms, whichever is greater
Supply Voltage 90 to 270V AC/DC @ 50/60Hz
Mounting Panel Mount (72 x 72 mm)
Housing ABS
Weight Approximately 375 grams
Operating Temperature 0 to 50°C
Storage Temperature -5 to 55°C
Humidity 95% RH
SELEC

XT 242 | SELEC | Timers

₹ 8,328.33
Feature Specification
Display 7-segment LED, Dual Display (3+3 Digits)
Relay Contact 2 C/O (DPDT)
Relay Rating 5A @ 230V AC / 28V DC resistive load
Time Ranges 9.99 / 99.9 / 999 sec; 9.59 min:sec; 99.9 / 999 min; 9.59 hr:min; 99.9 / 999 hr
Operating Modes ON Delay, Interval, Cyclic ON First, Cyclic OFF First
Counting Direction Up / Down selectable
Reset Options Front panel, Remote, Power interruption (programmable)
Accuracy ±0.05% or 50 ms, whichever is greater
Supply Voltage 90 to 270V AC/DC @ 50/60Hz
Mounting Panel Mount (72 x 72 mm)
Housing ABS
Weight Approximately 375 grams
Operating Temperature 0 to 50°C
Storage Temperature -5 to 55°C
Humidity 95% RH
