SPARECRUX is NOT an authorized distributor for FESTO

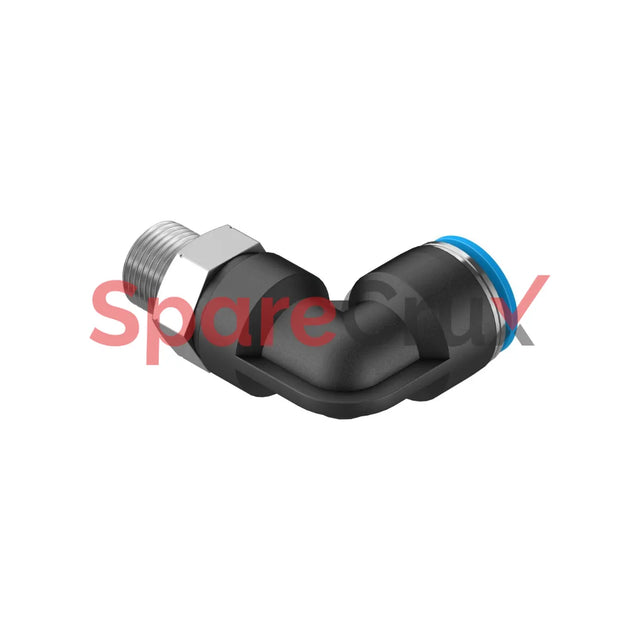

153045 | FESTO | Push-in L-fitting QSL-1/8-4

₹ 126.51

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

153045

الشركة المصنعة للمعدات الأصلية

FESTO

وصف

Parameter Specification
Size Standard
Nominal Size 2.8 mm
Design L-shape, Push-pull principle
Size of Pack 10
Operating Pressure Range -0.095 MPa … 0.6 MPa (-0.95 bar … 6 bar)
Temp-dependent Pressure Range -0.095 MPa … 1.4 MPa (-0.95 bar … 14 bar)
Operating Medium Compressed air (ISO 8573-1:2010 [7:-:-]), Water (liquid, ice-free)
Corrosion Resistance Class CRC 1 – Low corrosion stress
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Cleanroom Class Class 4 (ISO 14644-1)
Ambient Temperature Range -10 °C … 80 °C
Nominal Torque 7 Nm
Torque Tolerance ± 20%
Weight 10 g
Mounting External hexagon, size 10 mm
Pneumatic Connection Port 1 Male thread R1/8
Pneumatic Connection Port 2 Tubing OD 4 mm
Release Ring Color Blue
Material Screwed Plug Nickel-plated brass
Material Housing PBT
Material Release Ring POM
Material Tubing Seal NBR
Material Tubing Clamp Component High-alloy stainless steel
RoHS Compliance Yes
