SPARECRUX is NOT an authorized distributor for FESTO

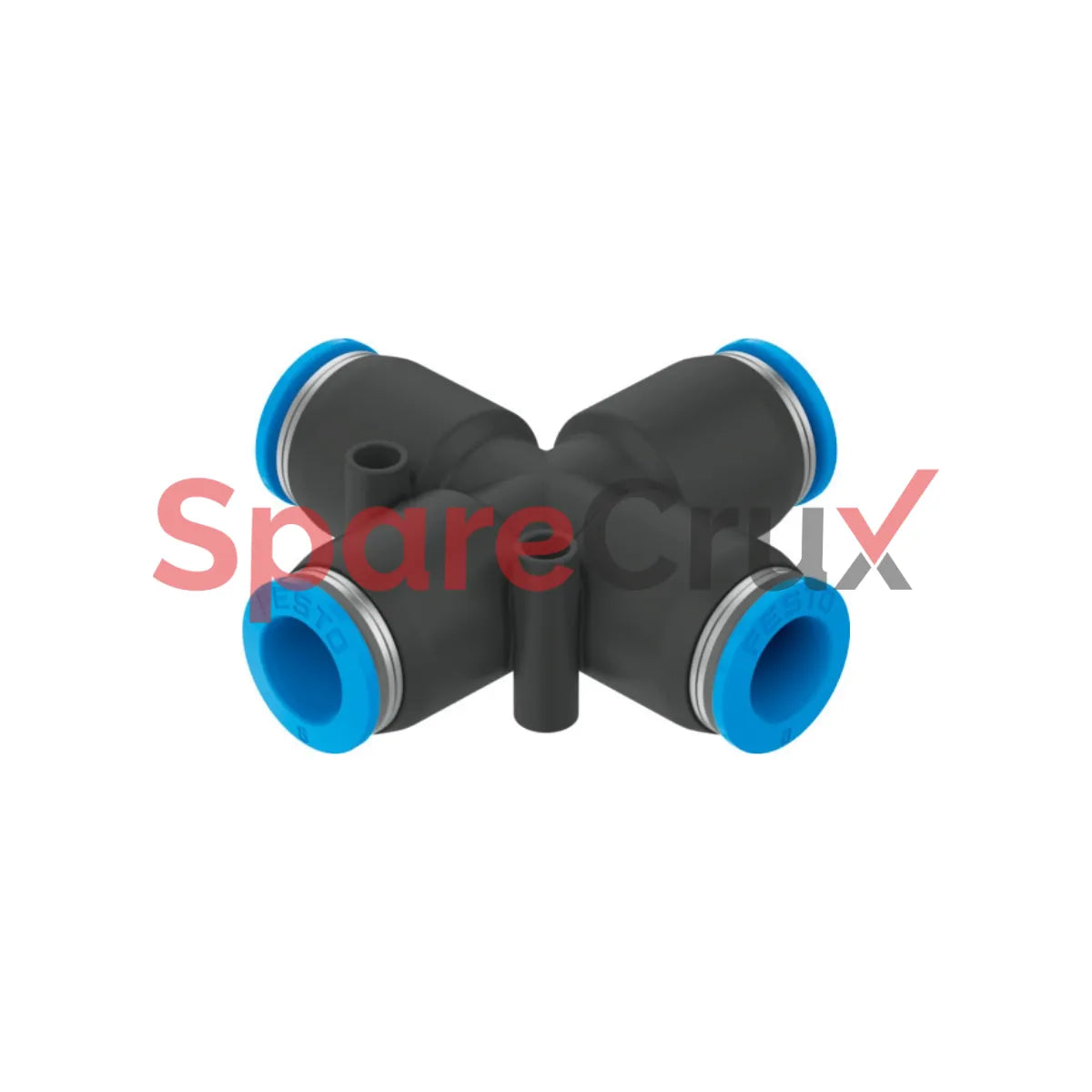

153285 | FESTO | Push-in X Connector QSX-8

₹ 396.44

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

153285

الشركة المصنعة للمعدات الأصلية

FESTO

وصف

Parameter Value
Size Standard
Nominal Size 4.7 mm
Mounting Position Optional
Design X-shape, Push-pull principle
Size of Pack 10
Operating Pressure (Full Temp. Range) -0.095 MPa to 0.6 MPa-0.95 bar to 6 bar-13.775 psi to 87 psi
Temperature-Dependent Operating Pressure -0.095 MPa to 1.4 MPa-0.95 bar to 14 bar-13.775 psi to 203 psi
Note on Operating Pressure Water: max. 0.6 MPa at max. 50 °C
Operating Medium - Compressed air (ISO 8573-1:2010 [7:-:-])- Water (liquid, ice-free)
Note on Operating and Pilot Medium Lubricated operation possible
Corrosion Resistance Class (CRC) 1 – Low corrosion stress
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Cleanroom Class Class 4 (ISO 14644-1)
Ambient Temperature Range -10 °C to +80 °C
Product Weight 20 g
Number of Outputs 3
Number of Supply Lines 1
Pneumatic Connection, Port 1 For tubing with outer diameter of 8 mm
Pneumatic Connection, Port 2 For tubing with outer diameter of 8 mm
Colour of Release Ring Blue
Note on Materials RoHS-compliant
