SPARECRUX is NOT an authorized distributor for BUSSMANN

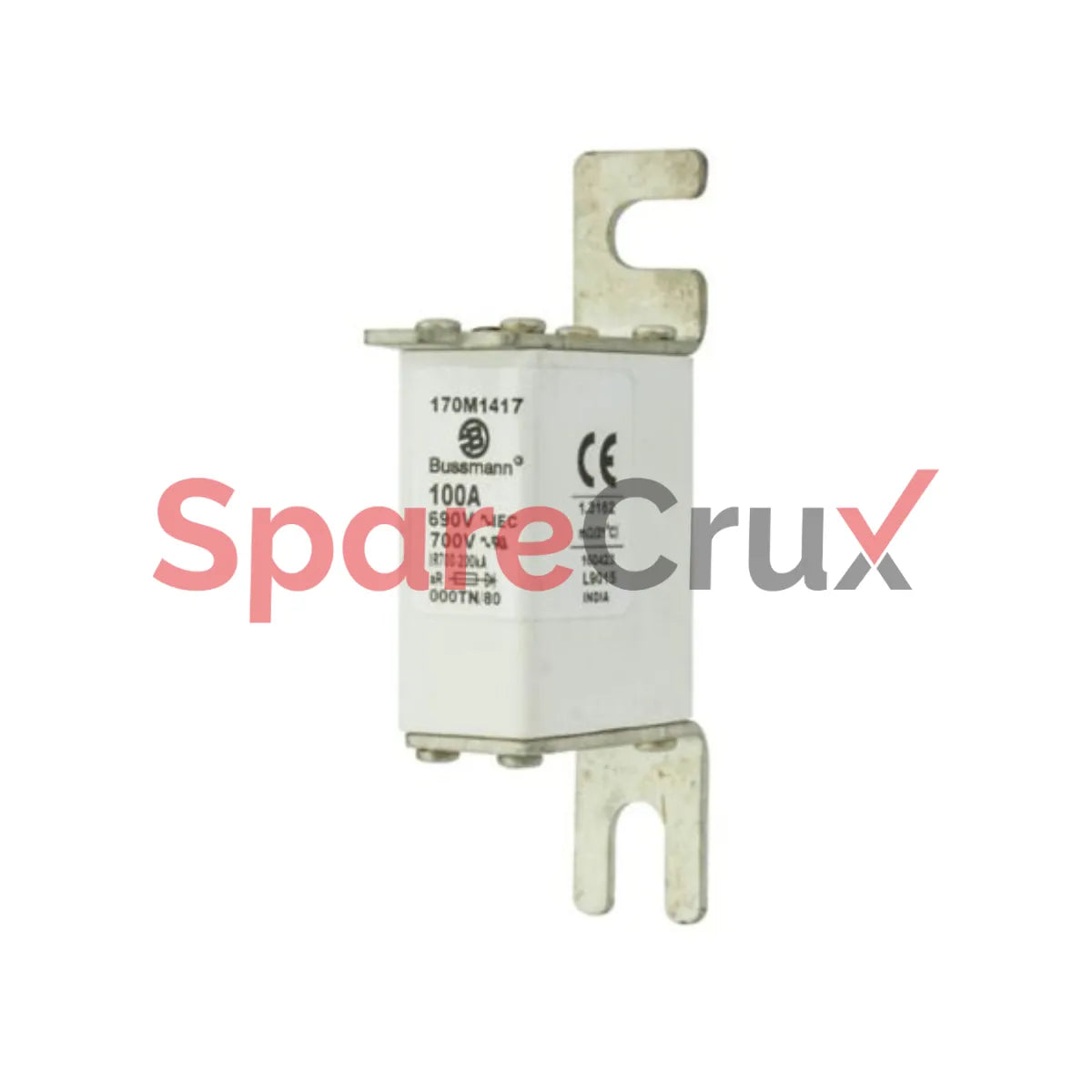

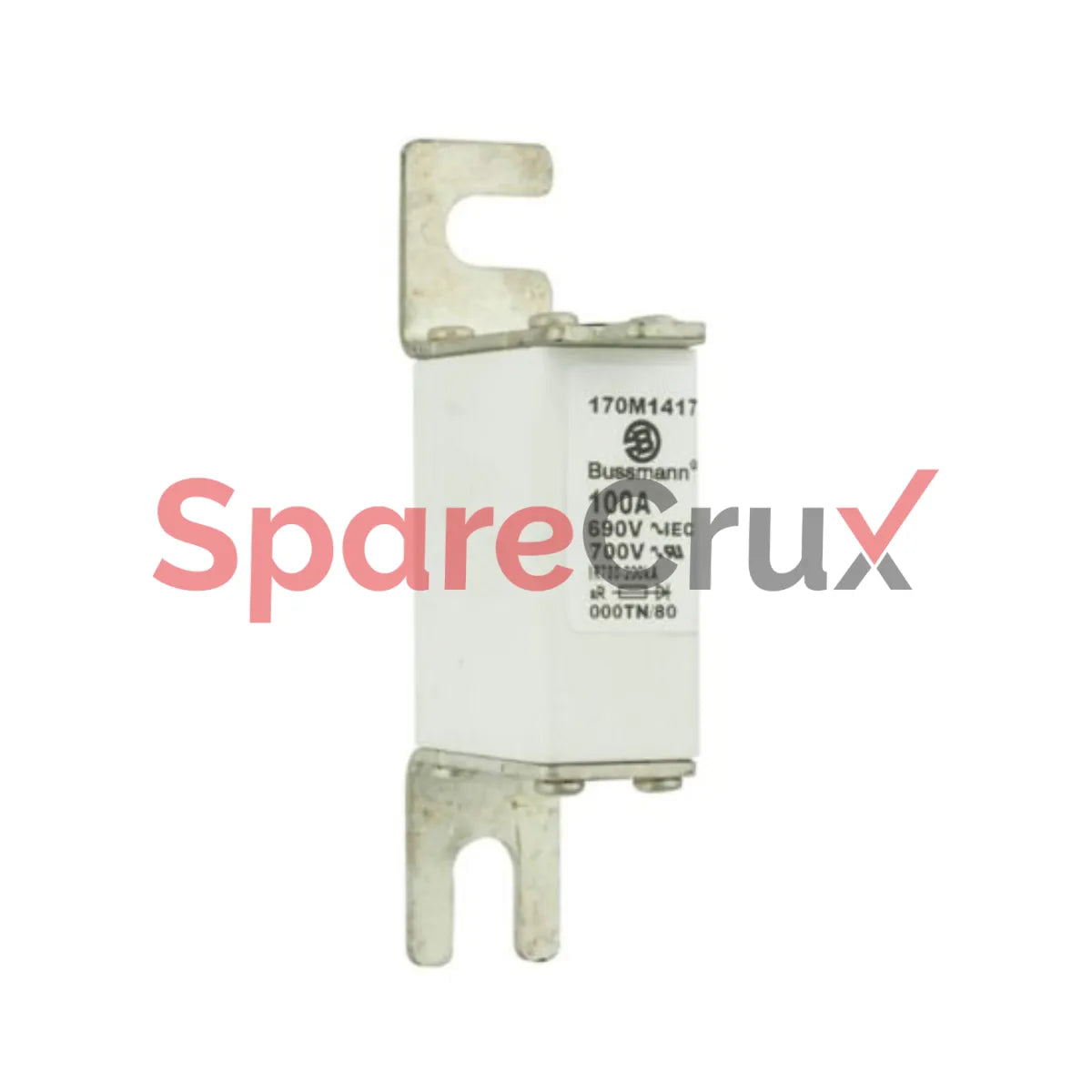

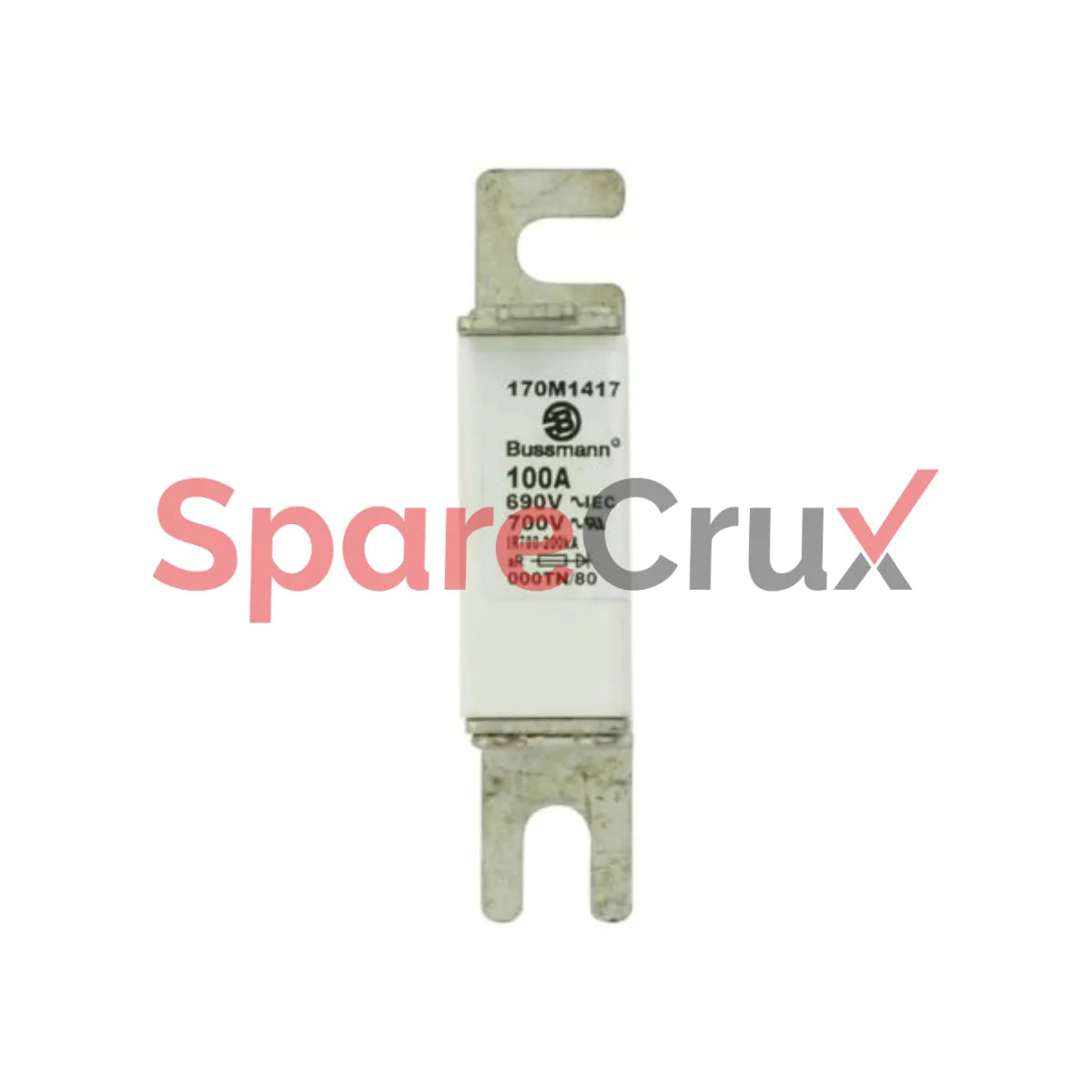

170M1417 | BUSSMANN | FUSE 100A 690 V

₹ 17,740.00

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

170M1417

الشركة المصنعة للمعدات الأصلية

BUSSMANN

وصف

Attribute Details
Product Name Eaton Bussmann series high speed square body fuse
Catalog Number 170M1417
UPC 051712216838
EAN 5027590440967
Product Length/Depth 100 mm
Product Height 53 mm
Product Width 21 mm
Product Weight 134.5 g
Warranty Not Applicable
Compliances CE Marked, RoHS Compliant
Certifications IEC Rated, UL Recognized
Global Catalog 170M1417
Amperage Rating 100 A
Breaking capacity 200 kA
Fuse indicator Top fuse status indicator
Insulated metal gripping lugs (IMGL) No
Utilization category aR (accompanied semiconductor protection)
Voltage type AC
Fuse size 000
Rated voltage AC 690 V
Center-to-center distance of connections 78 mm
Current type AC
Mounting dimension M8
Class Class aR
Clearing (I2T) 4650 at 660 V
Watt losses 24 W
Fuse shape Square body, slotted offset bolted tags
Pre arc (I2T) 695
Color None
Interrupt rating 200 kAIC
Connection Blade end x blade end
Construction size 000
Packaging type Standard
Voltage rating 690 V (IEC), 700 V (UL)
Type Fuse
Application Semiconductor, DC Common bus, DC drives, power converters/rectifiers
Fuse type DIN 43653, TN/80 Type T Indicator for Micro
Fuse system (according to IEC 60269) Other
