SPARECRUX is NOT an authorized distributor for FESTO

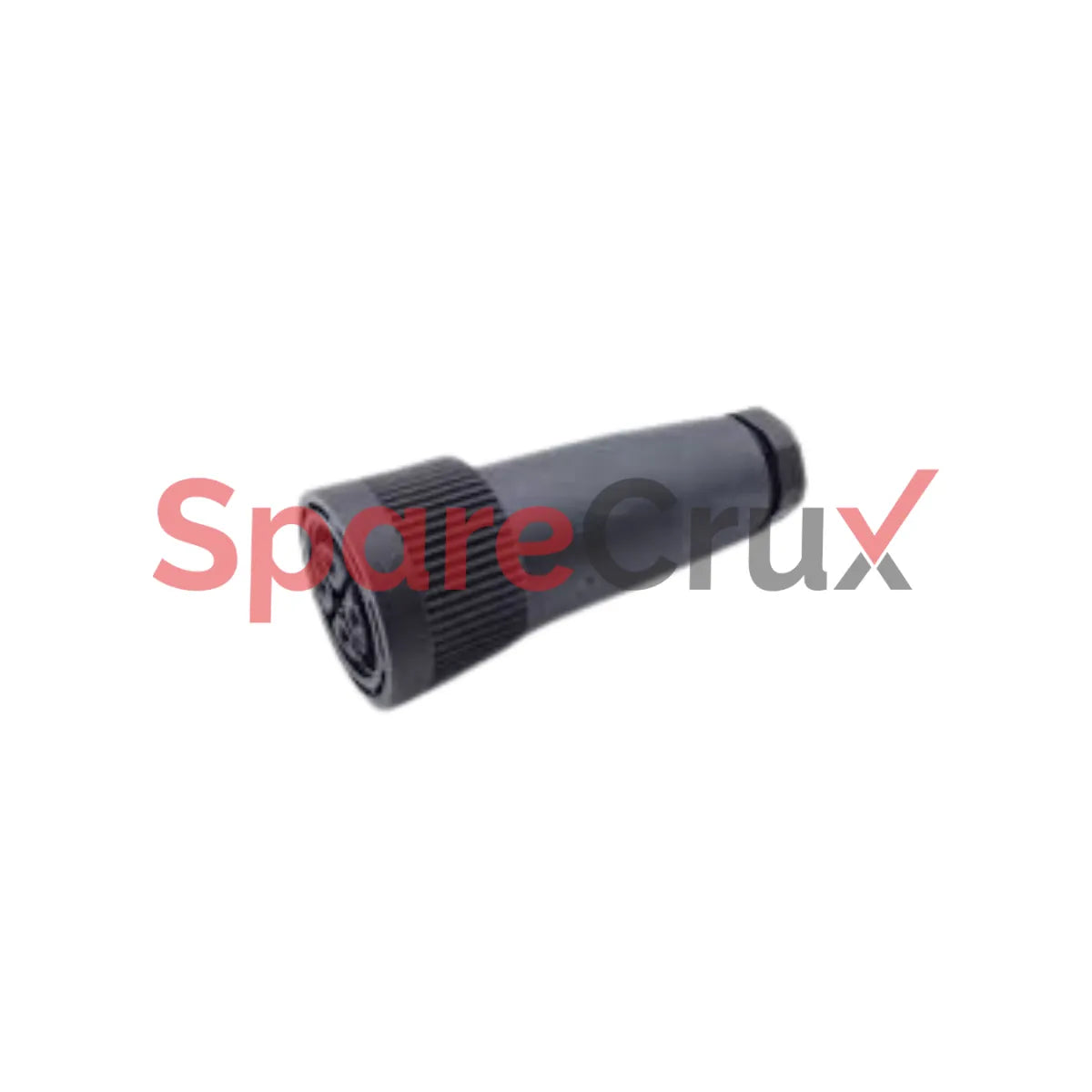

18493 | FESTO | Plug Socket NTSD-GD-9

₹ 1,346.45

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

18493

الشركة المصنعة للمعدات الأصلية

FESTO

وصف

Feature Specification
Type of mounting Via union nut
Mounting position Optional
Product weight 25 g
Electrical connection 4-pin
Connector type Straight socket, screw terminal
Operational voltage range ≤ 250 V
Permissible current load 16 A
Cable fitting Pg 9
Permissible cable diameter 6 mm ... 8 mm
Connection cross section 1.5 mm²
Degree of protection IP67
Ambient temperature -5 °C ... 50 °C
Storage temperature -20 °C ... 70 °C
LABS (PWIS) conformity VDMA24364-B2-L
Material housing PBT (Polybutylene Terephthalate)
Material electrical contact Copper alloy, brass
FESTO

18493 | FESTO | Plug Socket NTSD-GD-9

₹ 1,346.45
Feature Specification
Type of mounting Via union nut
Mounting position Optional
Product weight 25 g
Electrical connection 4-pin
Connector type Straight socket, screw terminal
Operational voltage range ≤ 250 V
Permissible current load 16 A
Cable fitting Pg 9
Permissible cable diameter 6 mm ... 8 mm
Connection cross section 1.5 mm²
Degree of protection IP67
Ambient temperature -5 °C ... 50 °C
Storage temperature -20 °C ... 70 °C
LABS (PWIS) conformity VDMA24364-B2-L
Material housing PBT (Polybutylene Terephthalate)
Material electrical contact Copper alloy, brass
