SPARECRUX is NOT an authorized distributor for FESTO

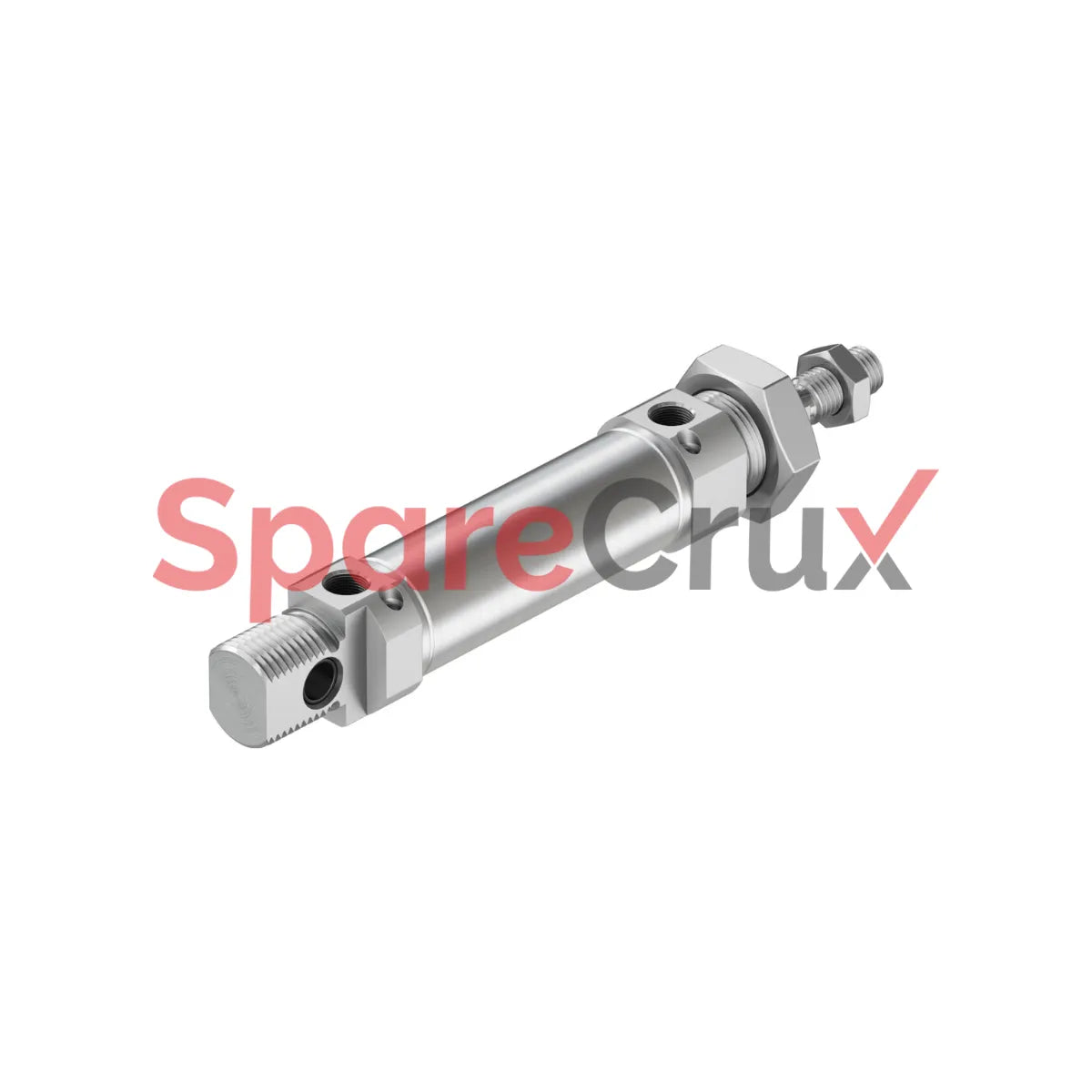

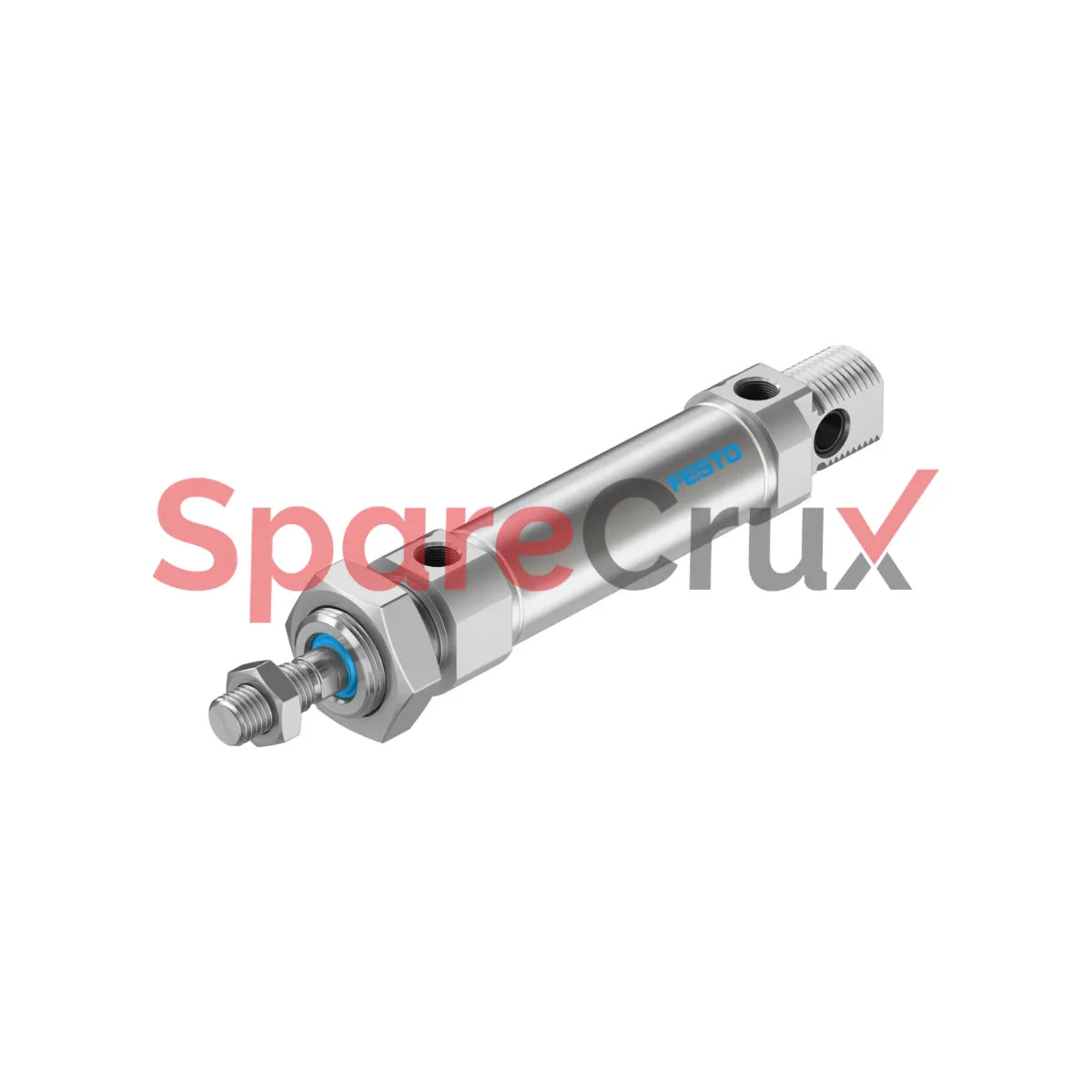

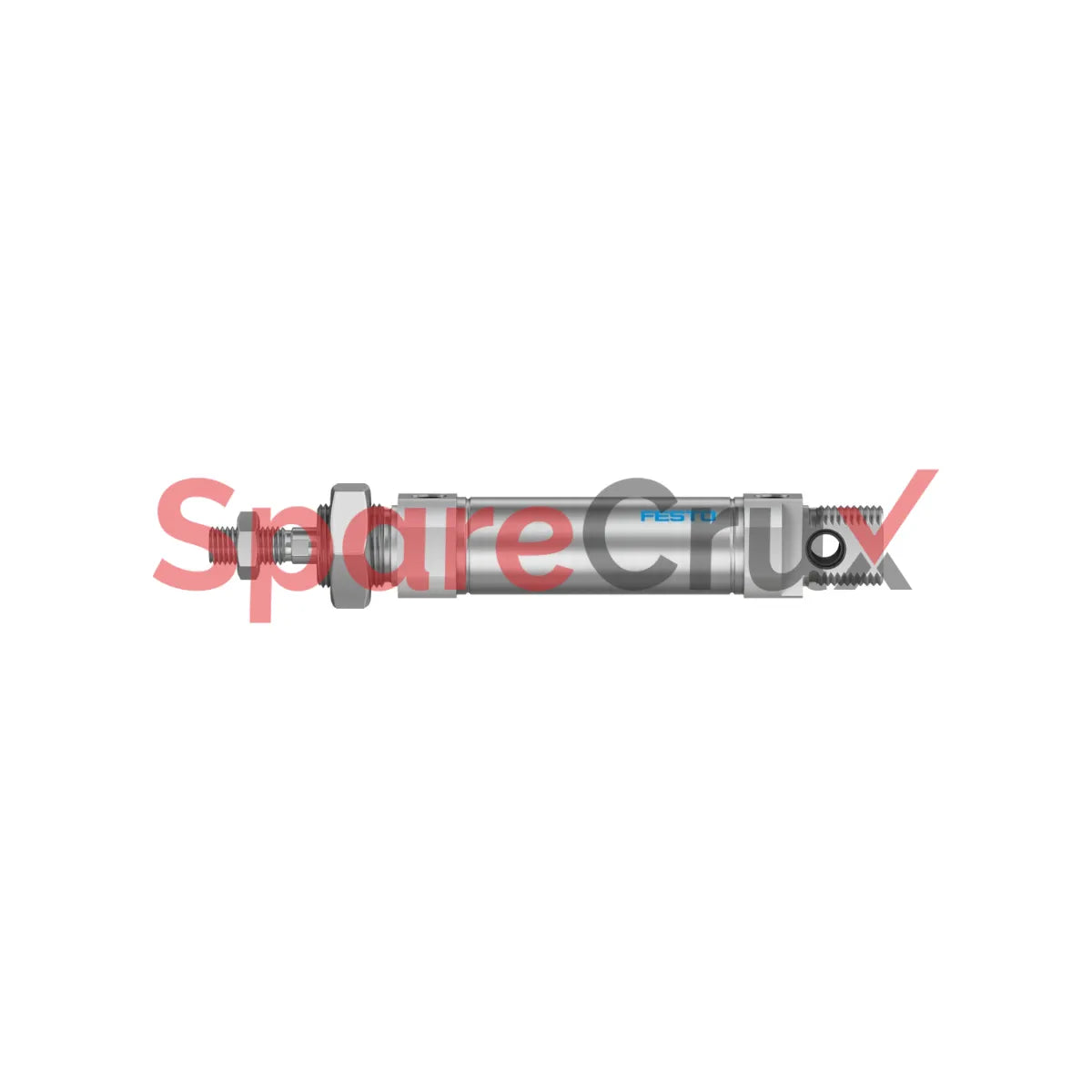

196024 | FESTO | Round Cylinder DSNU-32-100-PPV-A

₹ 3,776.00

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

196024

الشركة المصنعة للمعدات الأصلية

FESTO

وصف

Property Specification
Stroke 100 mm
Piston diameter 32 mm
Piston rod thread M10x1.25
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Design Piston
Piston rod Cylinder barrel
Position detection Via proximity switch
Symbol 00991235
Operating pressure 0.1 MPa ... 1 MPa
Operating pressure 1 bar ... 10 bar
Mode of operation Double-acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20 °C ... 80 °C
Impact energy in end positions 0.4 J
Cushioning length 14 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 415 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 482.5 N
Moving mass 211 g
Product weight 524 g
Type of mounting With accessories
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy
Material seals NBR, TPE-U(PU)
Material piston rod High-alloy steel
