SPARECRUX is NOT an authorized distributor for FESTO

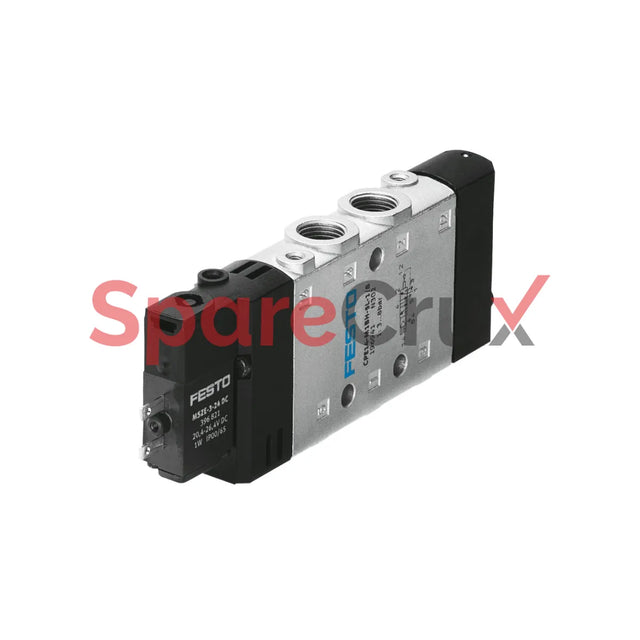

196941 | FESTO | Solenoid Valve CPE14-M1BH-5L-1/8

₹ 3,471.69

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

196941

الشركة المصنعة للمعدات الأصلية

FESTO

وصف

Parameter Specification
Valve function 5/2-way, monostable
Type of actuation Electric
Construction width 14 mm
Standard nominal flow rate (DIN 1343) 800 l/min
Pneumatic working port G1/8
Operating voltage 24V DC
Operating pressure 0.3 MPa ... 0.8 MPa (3 bar ... 8 bar)
Design Piston gate valve
Type of reset Pneumatic spring
Approval c UL us - Recognized (OL)
Maritime classification See certificate (DNV-TAA000032X, UL MH19482)
Degree of protection IP65 (To IEC 60529)
With plug socket Yes
Nominal size 6 mm
Exhaust-air function With flow control option
Sealing principle Soft
Mounting position Optional
Manual override Detenting via accessory, Non-detenting
Type of piloting Pilot actuated
Pilot air supply Internal
Flow direction Non-reversible
Symbol 00991023
Valve position code Inscription label holder
Overlap lap
Switching time off 32 ms
Switching time on 24 ms
Duty cycle 100% in conjunction with holding current reduction
Max. positive test pulse with 0 signal 1200 µs
Max. negative test pulse with 1 signal 900 µs
FESTO
