SPARECRUX is NOT an authorized distributor for FESTO

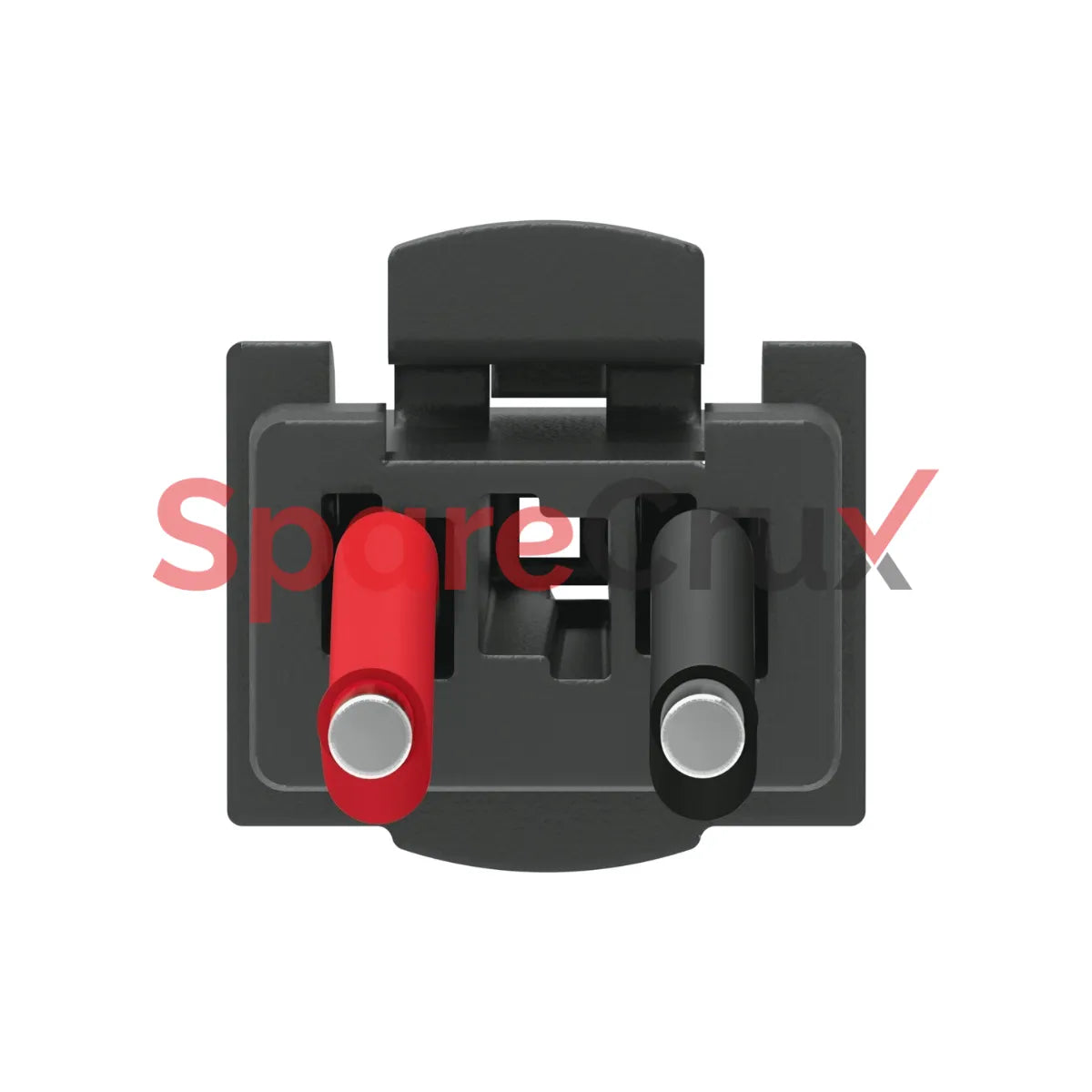

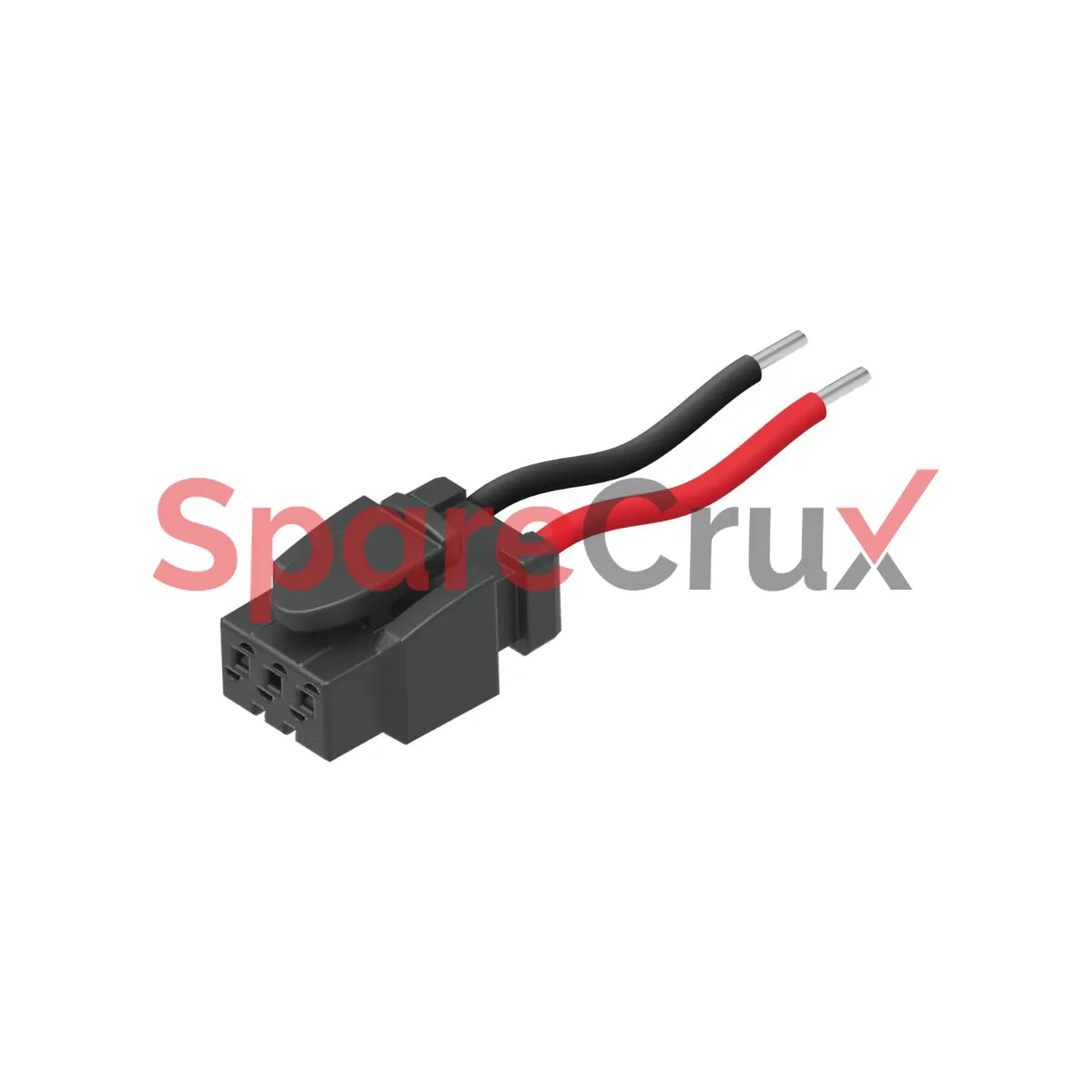

566656 | FESTO | PlugSocket With Cable NEBV-H1G2-KN-2.5-N-LE2

₹ 163.65

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

566656

الشركة المصنعة للمعدات الأصلية

FESTO

وصف

Parameter Value
Cable designation Without inscription label holder
Mounting position Optional
Product weight 17 g
Electrical connection 1, function Field device side
Electrical connection 1, design Angular
Electrical connection 1, connection type Socket
Electrical connection 1, cable outlet Straight
Electrical connection 1, connector system Connection pattern H
Electrical connection 1, number of connections/cores 3
Electrical connection 1, used connections/cores 2
Electrical connection 1, type of mounting Snap-locking
Electrical connection 1, connection pattern 00995622
Electrical connection 2, function Controller side
Electrical connection 2, connection type 2x single wires
Electrical connection 2, connector system Open end
Electrical connection 2, number of connections/cores 2
Electrical connection 2, used connections/cores 2
Operational voltage range DC 0 V ... 60 V
Current rating at 40° C 3 A
Cable length 2.5 m
Cable characteristic Standard
Cable diameter 1.3 mm
Cable structure 2 x 0.14 mm²
Nominal cross section conductor 0.14 mm²
Wire ends Cut off bluntly
Degree of protection IP40
FESTO

566656 | FESTO | PlugSocket With Cable NEBV-H1G2-KN-2.5-N-LE2

₹ 163.65
Parameter Value
Cable designation Without inscription label holder
Mounting position Optional
Product weight 17 g
Electrical connection 1, function Field device side
Electrical connection 1, design Angular
Electrical connection 1, connection type Socket
Electrical connection 1, cable outlet Straight
Electrical connection 1, connector system Connection pattern H
Electrical connection 1, number of connections/cores 3
Electrical connection 1, used connections/cores 2
Electrical connection 1, type of mounting Snap-locking
Electrical connection 1, connection pattern 00995622
Electrical connection 2, function Controller side
Electrical connection 2, connection type 2x single wires
Electrical connection 2, connector system Open end
Electrical connection 2, number of connections/cores 2
Electrical connection 2, used connections/cores 2
Operational voltage range DC 0 V ... 60 V
Current rating at 40° C 3 A
Cable length 2.5 m
Cable characteristic Standard
Cable diameter 1.3 mm
Cable structure 2 x 0.14 mm²
Nominal cross section conductor 0.14 mm²
Wire ends Cut off bluntly
Degree of protection IP40
