SPARECRUX is NOT an authorized distributor for LAPP GROUP

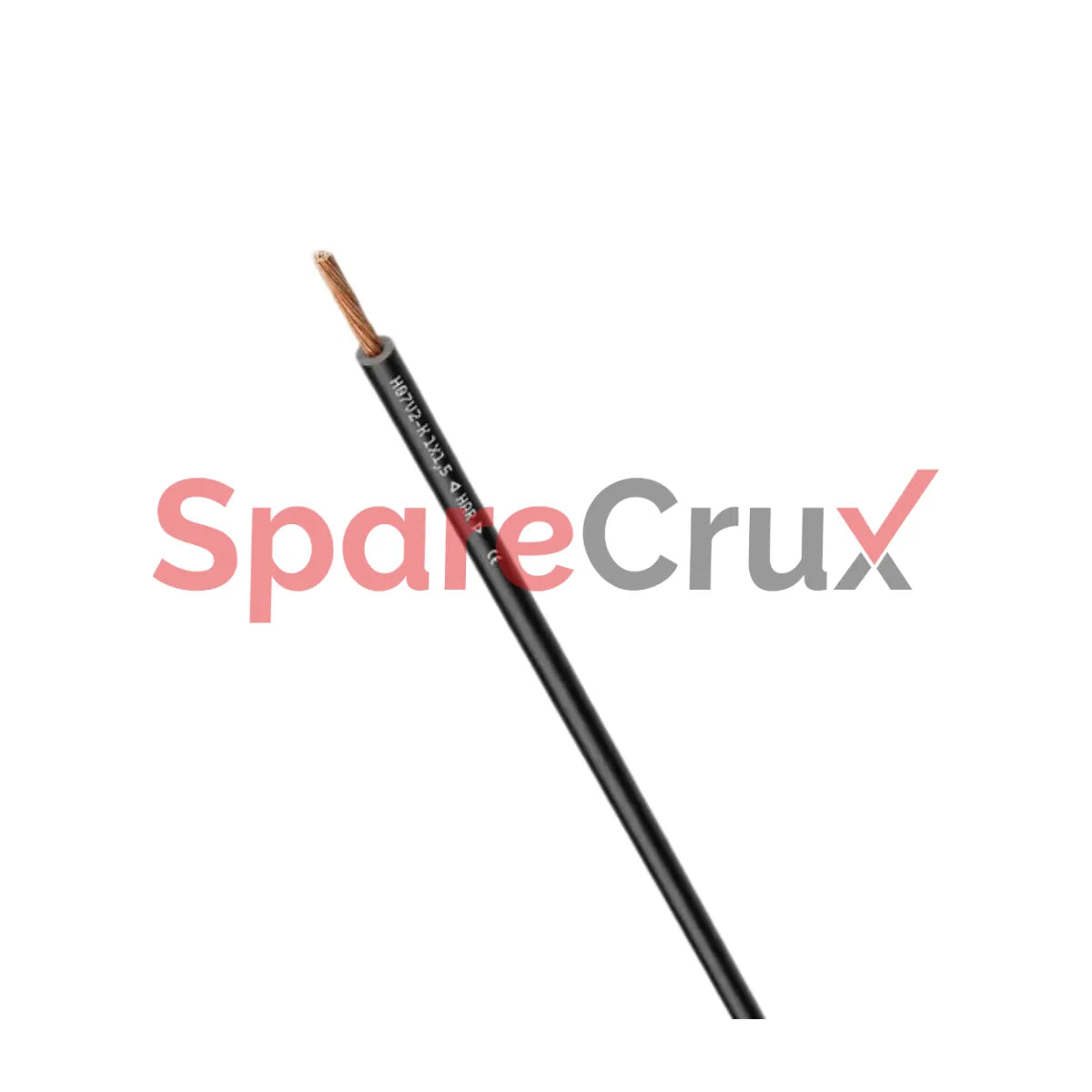

H07V2-K 1X25 BK | LAPP GROUP | Single core, 1X25, Black,Ring; U0/U: 450/750 V, PVC

₹ 305.90

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

H07V2-K 1X25 BK

الشركة المصنعة للمعدات الأصلية

LAPP GROUP

وصف

Specification Details
Product Type Single core
Weight 255 kg/km
Copper Index 240.000 kg/km
Copper Index (lb) 1612.726 lb/10,000 ft
Single Core Packaging Type Ring
Nominal Voltage U0/U: 450/750 V AC rms according to IEC
Test Voltage 2.5 kV
Current Rating According to IEC 60364-5-52
Short-Circuit Temperature [5s] 160 °C
Max. Conductor Resistance at 20°C 0.78 Ω/km
Li-stranded Cables LiY
Harmonised Design H07V2-K
Cable Dimension 1X25
Conductor Cross-Section 25 mm²
Conductor Material Bare Copper
Conductor Design IEC 60228 class 5: fine-wire
Number of Cores 1
Min. Outer Diameter 8.85 mm
Application Area Fixed Installation
Minimum Bending Radius (Fixed Installation) 4 × outer diameter
Minimum Bending Radius in mm (Stationary) 36.6 mm
Temperature (Fixed Installation) -10 °C to +90 °C
Installation Temperature Min. +5 °C
