SPARECRUX is NOT an authorized distributor for SCHNEIDER ELECTRIC

This product has been discontinued, and manufacturer warranty or support may no longer be available.

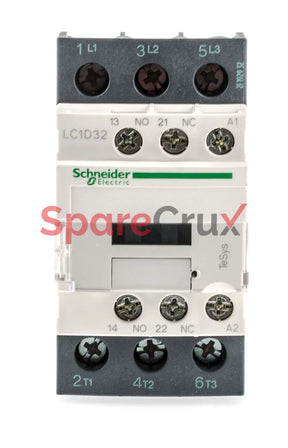

LC1D32 | SCHNEIDER ELECTRIC | TeSys Deca contactor - 3P (3 NO) - AC-3 - ≤ 440 V 32 A - 220 V AC coil

₹ 11,728.00

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

LC1D32

الشركة المصنعة للمعدات الأصلية

SCHNEIDER ELECTRIC

وصف
Range of product TeSys Deca (TeSys D)
Product or component type Contactor
Device short name LC1D
Poles description 3‑pole (3 NO)
Rated operational current Ie 32 A @ ≤ 440 V AC AC‑3; 50 A AC‑1 (≤ 60 °C)
Rated operational voltage Ue ≤ 690 V AC (25–400 Hz); ≤ 300 V DC
Motor power rating 15 kW @ 400 V; 7.5 kW @ 230 V; up to 18.5 kW @ 500 – 690 V AC
Control circuit voltage 220 V AC coil (variant depending on code)
Auxiliary contacts 1 NO + 1 NC mirror contact
Rated impulse withstand voltage Uimp 6 kV (IEC 60947)
Overvoltage category III
Conventional thermal current Ith 50 A @ ≤ 60 °C
Rated making capacity Irms 550 A power; 140 A signalling
Rated short‑time withstand Icw 260 A @ 10 s; up to 138 A @ 1 min (power)
Associated fuse rating 63 A gG (power & signalling)
Average impedance ≈ 2 mΩ @ 50 Hz
Rated insulation voltage Ui 600 V (UL/CSA); 690 V (IEC)
Electrical durability ~1.65 M cycles (AC‑3 @ 32 A)
Mechanical durability 15 M cycles
Operating time Close: 12–22 ms; Open: 4–19 ms
Mounting DIN‑rail or panel
Terminals – control Screw clamp, 1…4 mm² flexible/solid
Terminals – power Screw clamp, 1.5…10 mm² (EverLink BTR)
Tightening torque Control: 1.7 N·m; Power: 2.5 N·m
Operating temp −20…60 °C (storage −60…80 °C)
Protection degree IP20 (front)
Standards & certifications IEC 60947‑4‑1, ‑5‑1; UL 508; CSA; CCC; CE; GOST; DNV; GL; RINA
Sustainability status Green Premium, RoHS & REACh SVHC compliant
