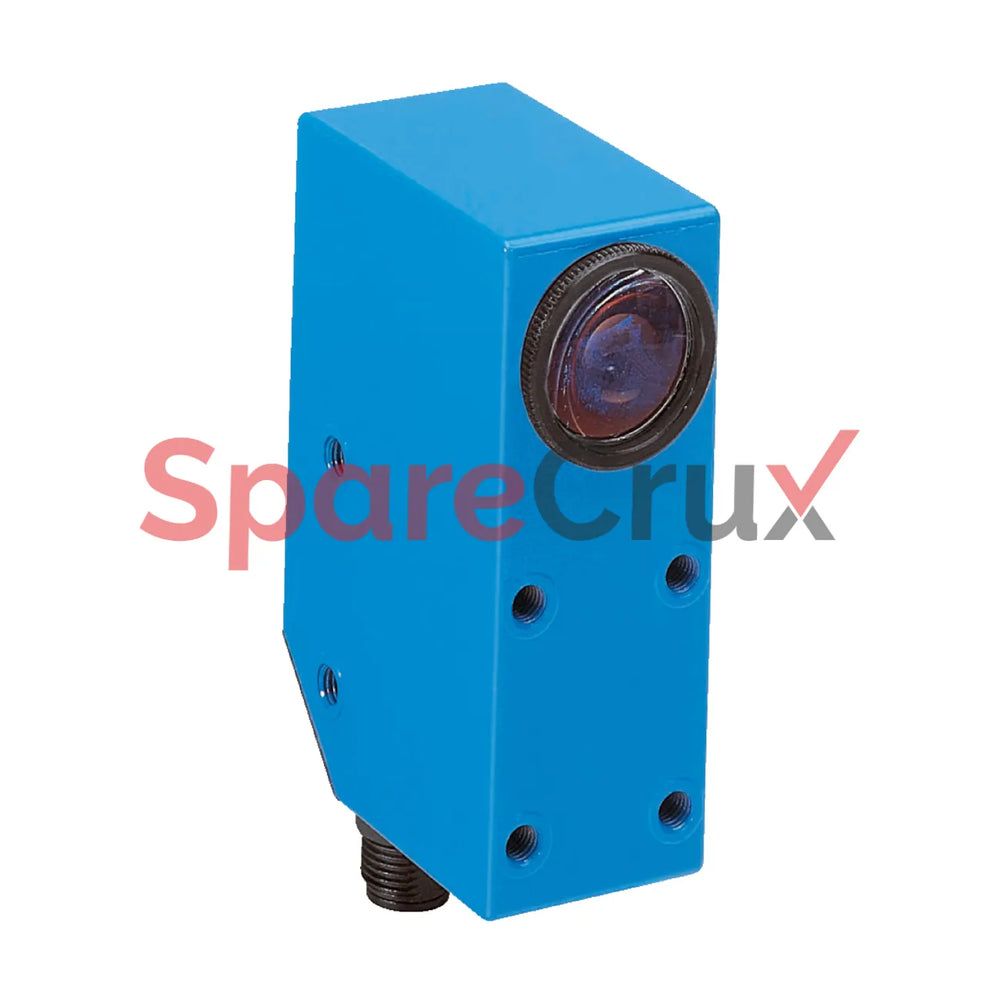

1015397 | SICK SENSORS | LUT3-620 Luminescence Sensors

₹ 123,847.20
Get Best Price on WhatsApp

Product Description
Dimensions (W x H x D) 30.4 mm x 53 mm x 80 mm
Sensing distance ≤ 20 mm 1)
Housing design Large
Working range 10 mm ... 35 mm
Light source LED, UV 2)
Wave length 375 nm
Light emission Long side
Light spot size 3 mm x 9 mm
Light spot direction Vertical
Receiving filters ≤ 420 nm 3)
Receiving range 450 nm ... 750 nm
Adjustment Potentiometer
Supply voltage 12 V DC ... 30 V DC 1)
Ripple < 2 Vpp 2)
Current consumption < 60 mA 3)
Switching frequency 1.5 kHz 4)
Response time 350 µs 5)
Switching output PNP, NPN
Switching output (voltage)

PNP: HIGH = VS– ≤ 3 V / LOW = approx. 0 V

NPN: HIGH = approx. UV / LOW ≤ 2 V
Switching mode Light switching
Output current Imax. 100 mA
Connection type Male connector M12, 4-pin
Protection class II 6)



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1015397

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing design - Large

Dimensions (W × H × D) - 30.4 mm × 53 mm × 80 mm

Light source - LED, Ultraviolet light ¹

Light emission - Long side

Light spot size - 3 mm × 9 mm

Light spot direction - Vertical

Receiving filters - ≤ 420 nm ²

Wave length - 375 nm

Working range - 10 mm … 35 mm

Sensing distance - ≤ 20 mm ³

Receiving range - 450 nm … 750 nm

Supply voltage - 12 V DC … 30 V DC ¹

Ripple - < 2 Vpp ²

Current consumption - < 60 mA ³

Switching frequency - 1.5 kHz ⁴

Housing material - Zinc diecast

Weight - 400 g

Not applicable for this product

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

Photobiological safety (IEC EN 62471) - ✔

ECLASS 5.1.4 - 27270908

ECLASS 6.0 - 27270908

ECLASS 7.0 - 27270908

ECLASS 8.0 - 27270908

ECLASS 9.0 - 27270908

ECLASS 10.0 - 27270908

ECLASS 11.0 - 27270908

ECLASS 12.0 - 27270908
