SPARECRUX is NOT an authorized distributor for SICK SENSORS

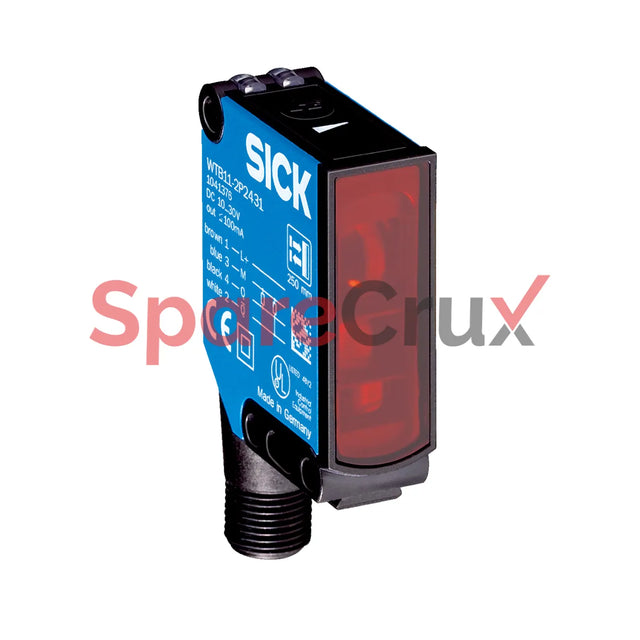

1041376 | SICK SENSORS | WTB11-2P2431 Photoelectric Proximity Sensor

₹ 15,540.00

  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

1041376

Fabricant d'équipement d'origine

SICK SENSORS

Description

Specification Details
Functional Principle Photoelectric proximity sensor
Functional Principle Detail Background suppression
Dimensions (W × H × D) 15.6 mm × 48.5 mm × 42 mm
Housing Design (Light Emission) Rectangular
Sensing Range Max. 20 mm ... 350 mm ¹
Sensing Range 20 mm ... 350 mm
Type of Light Visible red light
Supply Voltage UB 10 V DC ... 30 V DC ¹
Ripple < 5 Vpp ²
Current Consumption 30 mA ³
Switching Output PNP
Output Function Complementary
Switching Mode Light/dark switching
Signal Voltage PNP HIGH/LOW Uv - 2.5 V / approx. 0 V



SICK SENSORS 1041376 WTB11-2P2431 Photoelectric Proximity Sensor
SICK SENSORS

1041376 | SICK SENSORS | WTB11-2P2431 Photoelectric Proximity Sensor

₹ 15,540.00
Specification Details
Functional Principle Photoelectric proximity sensor
Functional Principle Detail Background suppression
Dimensions (W × H × D) 15.6 mm × 48.5 mm × 42 mm
Housing Design (Light Emission) Rectangular
Sensing Range Max. 20 mm ... 350 mm ¹
Sensing Range 20 mm ... 350 mm
Type of Light Visible red light
Supply Voltage UB 10 V DC ... 30 V DC ¹
Ripple < 5 Vpp ²
Current Consumption 30 mA ³
Switching Output PNP
Output Function Complementary
Switching Mode Light/dark switching
Signal Voltage PNP HIGH/LOW Uv - 2.5 V / approx. 0 V
