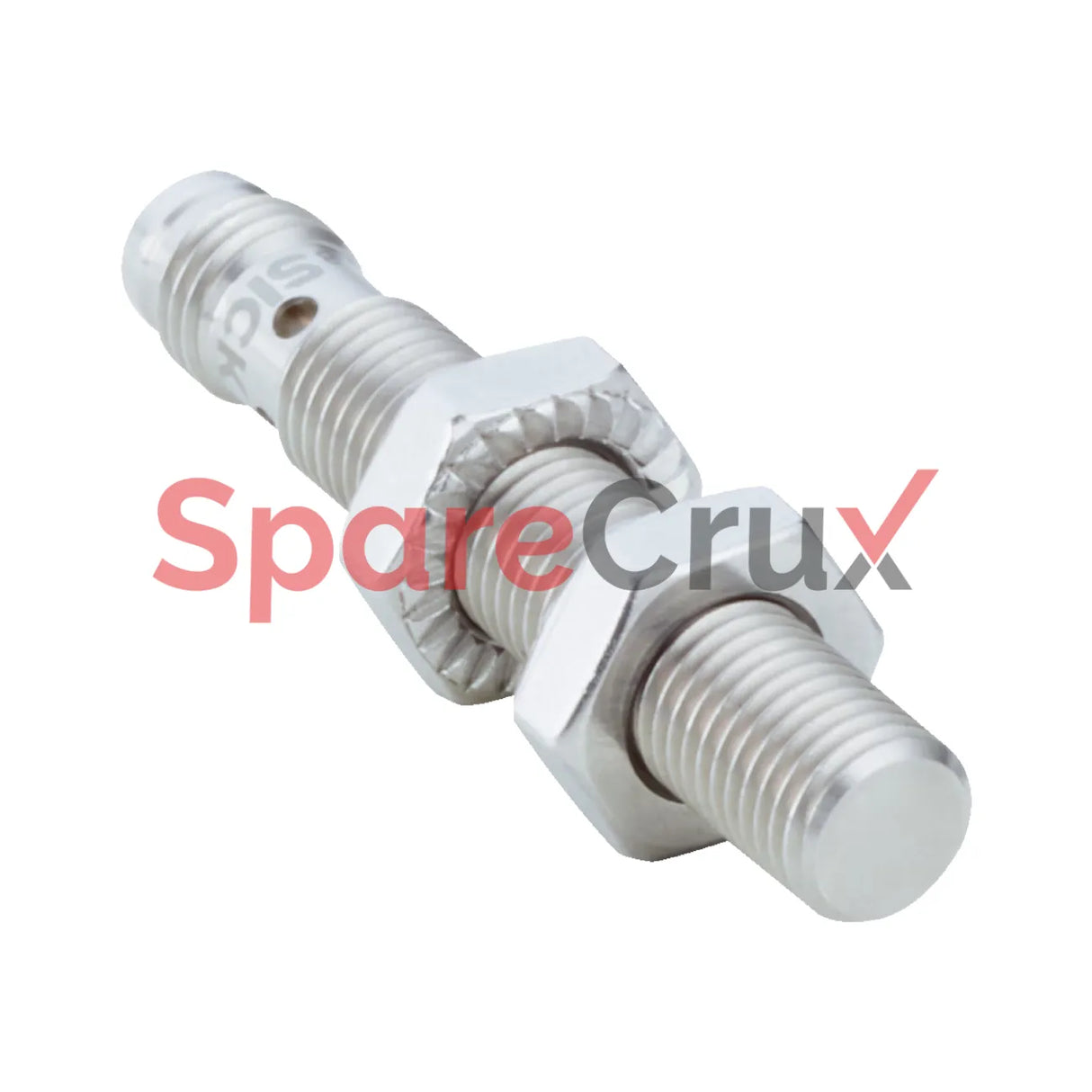

1093883 | SICK SENSORS | IMI08-02BNSVT0S Inductive Proximity Sensors

₹ 8,178.30

Get Best Price on WhatsApp

Product Description

Housing Metric
Thread size M8 x 1
Diameter Ø 8 mm
Sensing range Sn 2 mm
Safe sensing range Sa 1.62 mm
Installation type Flush
Switching frequency 100 Hz
Connection type Connector M8, 3-pin
Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material Stainless steel V2A, DIN 1.4305 / AISI 303
Housing length 50 mm
Thread length 38 mm
Tightening torque, max. ≤ 14 Nm



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1093883

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet
  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Metric

Thread size - M8 × 1

Diameter - Ø 8 mm

Sensing range Sn - 2 mm

Safe sensing range Sa - 1.62 mm

Installation type - Flush

Switching frequency - 100 Hz

Connection type - Connector M8, 3-pin

Switching output - NPN

Switching output detail - NPN

Supply voltage - 10 V DC ... 30 V DC

Ripple - ≤ 10% 1)

Voltage drop - ≤ 2 V 2)

Time delay before availability - ≤ 200 ms

Hysteresis - 1% ... 20%

Reproducibility - ≤ 2% 3)

Temperature drift (of Sr) - ≤ 10%

EMC - According to EN 60947-5-2

Continuous current Ia - ≤ 200 mA

No load current - ≤ 10 mA

MTTFD - 1,892 years

DCavg - 0%

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

FDA certificate - ✔

ECLASS 5.1.4 - 27270101

ECLASS 6.0 - 27270101

ECLASS 7.0 - 27270101

ECLASS 8.0 - 27270101

ECLASS 9.0 - 27270101

ECLASS 10.0 - 27270101

ECLASS 11.0 - 27270101

ECLASS 12.0 - 27274001

ECLASS 13.0 - 27274001
