SPARECRUX is NOT an authorized distributor for FESTO

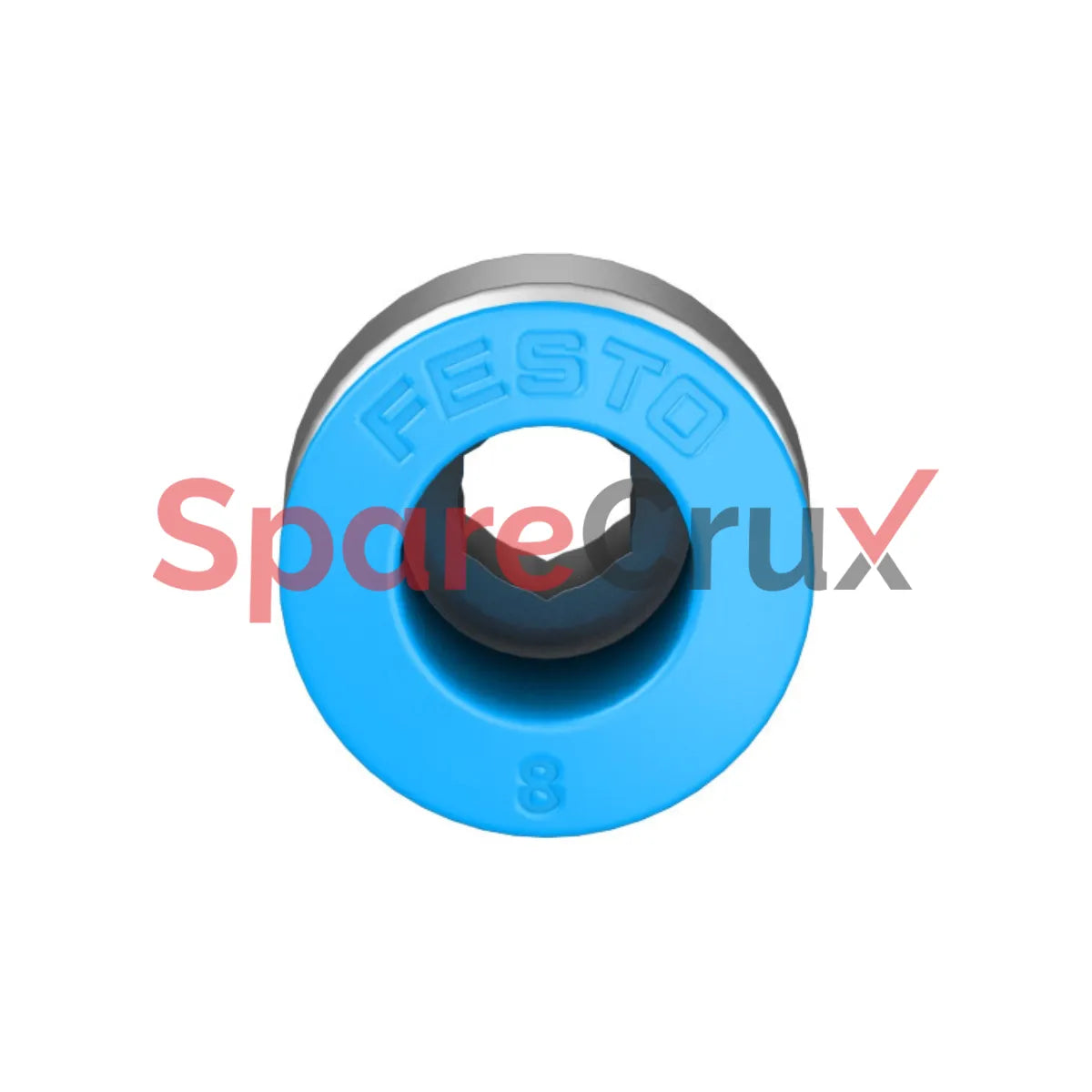

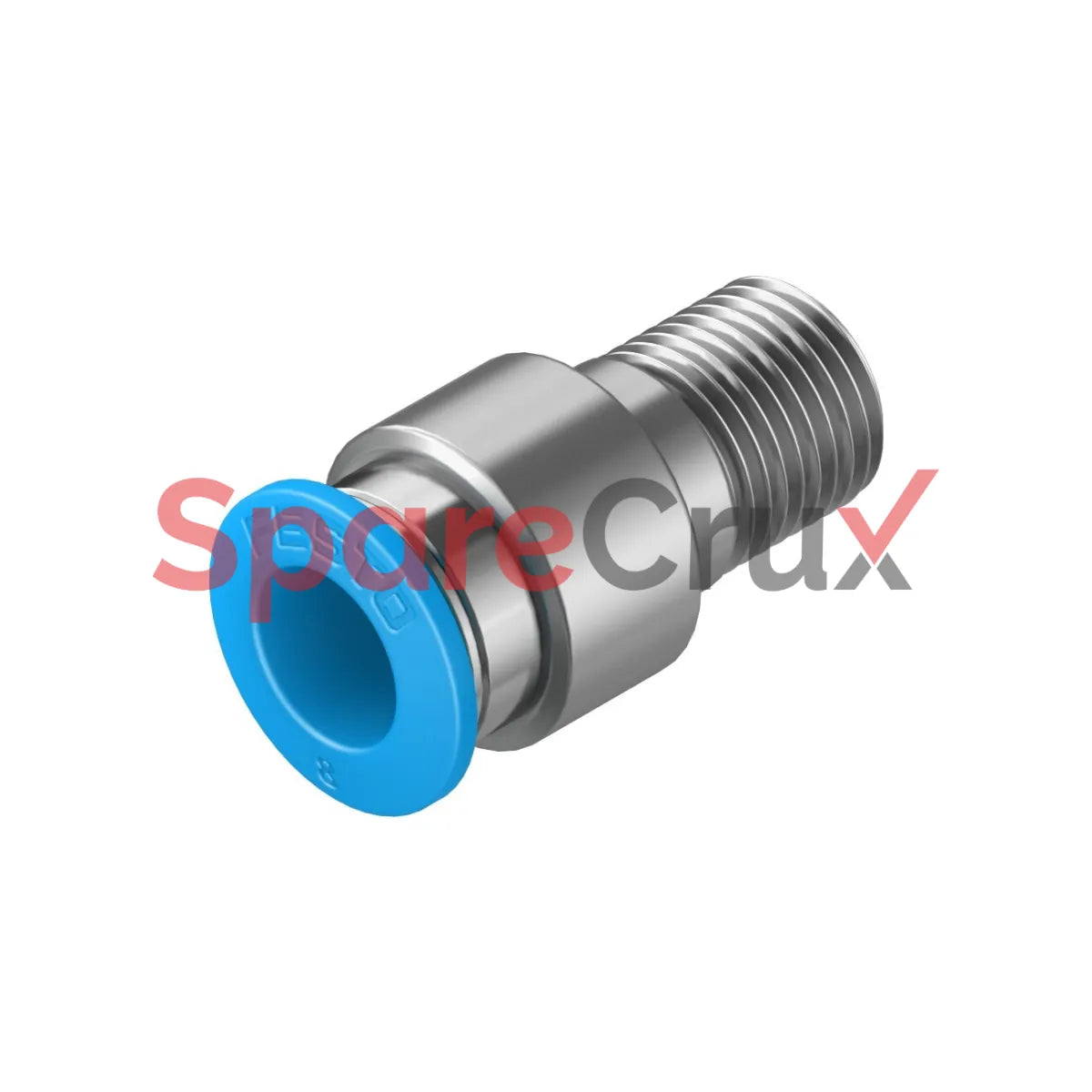

153018 | FESTO | Push-in Fitting QS-1/4-10-I

₹ 148.34

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

153018

Fabricant d'équipement d'origine

FESTO

Description
Specification Details
Size Standard
Nominal Size 6.3 mm
Type of Seal on Screwed Plug Coating
Mounting Position Optional
Design Straight design, Push-pull principle
Pack Size 10
Operating Pressure (Full Temp. Range) -0.095 MPa to 0.6 MPa-0.95 bar to 6 bar-13.775 psi to 87 psi
Operating Pressure (Temp-Dependent) -0.095 MPa to 1.4 MPa-0.95 bar to 14 bar-13.775 psi to 203 psi
Note on Operating Pressure For water: Max. 0.6 MPa at max. 50 °C
Operating Medium - Compressed air (ISO 8573-1:2010 [7:-:-])- Water (liquid, ice-free)
Lubricated Operation Possible
Corrosion Resistance Class (CRC) 1 (Low corrosion stress)
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Ambient Temperature Range -10 °C to +80 °C
Nominal Tightening Torque 9 Nm
Torque Tolerance ± 20%
Product Weight 20 g
Mounting Method Internal hexagon (Size 6 mm)
Pneumatic Connection - Port 1 Male thread R1/4
Pneumatic Connection - Port 2 For tubing outer diameter 10 mm
Colour of Release Ring Blue
RoHS Compliant Yes
