SPARECRUX is NOT an authorized distributor for FESTO

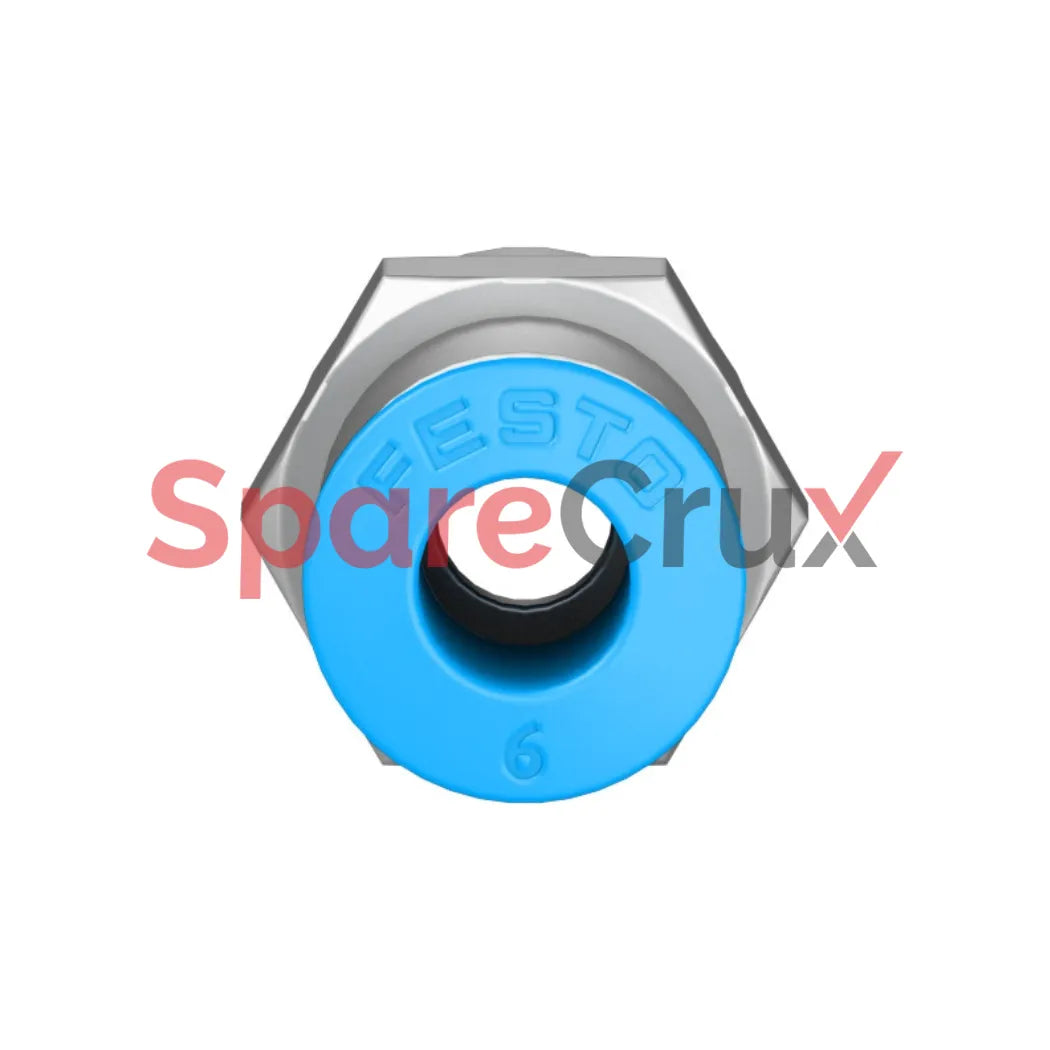

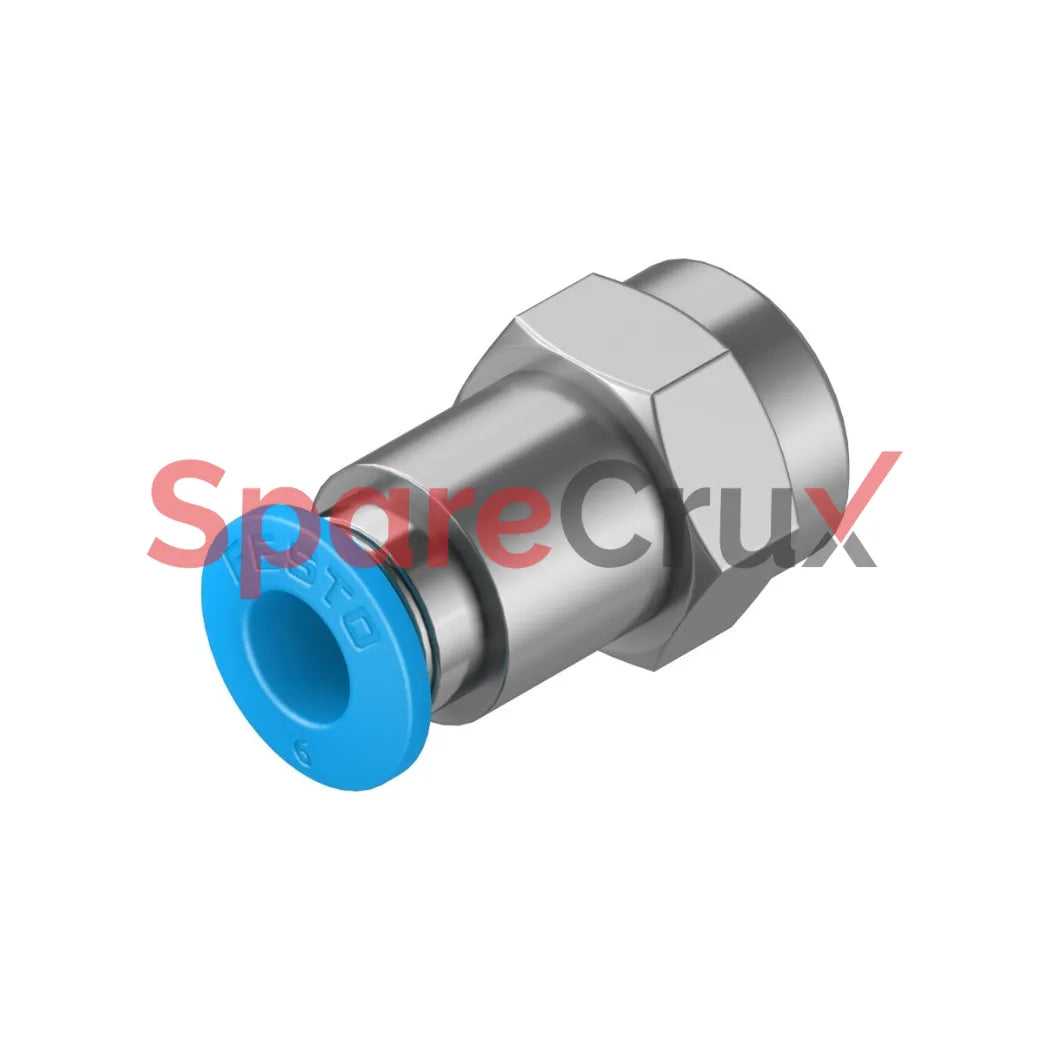

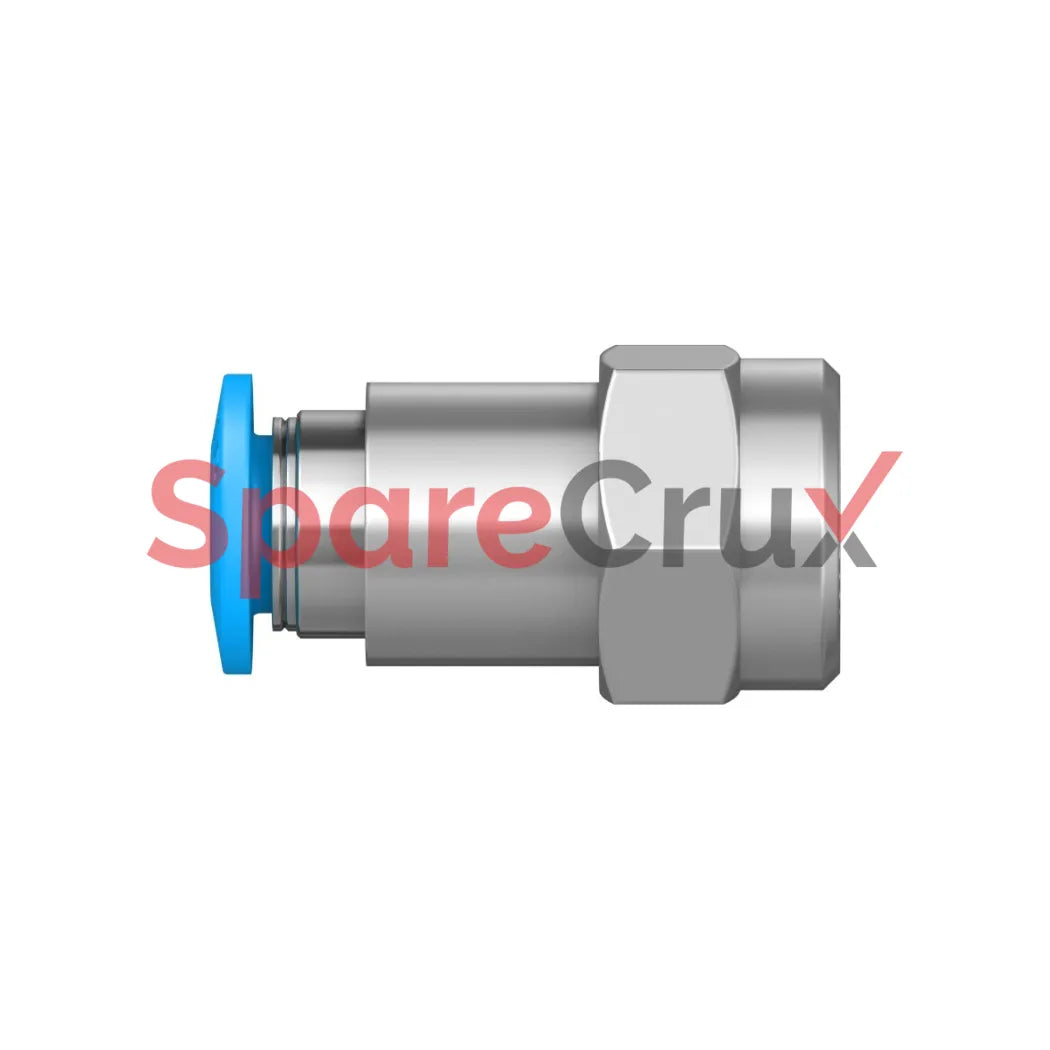

153023 | FESTO | Push-in Fitting QSF-1/8-6-B

₹ 161.74

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

153023

Fabricant d'équipement d'origine

FESTO

Description
Parameter Specification
Size Standard
Nominal Size 5 mm
Design Straight design Push-pull principle
Mounting Position Optional
Type of Seal on Screwed Plug Coating
Size of Pack 10
Operating Pressure (Full Temp. Range) -0.095 MPa to 0.6 MPa -0.95 bar to 6 bar -13.775 psi to 87 psi
Temp-Dependent Operating Pressure -0.095 MPa to 1.4 MPa -0.95 bar to 14 bar -13.775 psi to 203 psi
Note on Operating Pressure Water: max. 0.6 MPa at max. 50°C
Operating Medium Compressed air (ISO 8573-1:2010 [7:-:-]) Water (ice-free)
Note on Operating Medium Lubricated operation possible
Corrosion Resistance Class (CRC) 1 – Low corrosion stress
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Ambient Temperature -10 °C to 80 °C
Nominal Torque 7 Nm
Torque Tolerance ± 20%
Product Weight 15 g
Type of Mounting External hexagon, 14 mm
Pneumatic Connection, Port 1 Female thread G1/8
Pneumatic Connection, Port 2 For tubing with outside diameter of 6 mm
Colour of Release Ring Blue
Note on Materials RoHS-compliant
Material – Housing Brass, nickel-plated
Material – Release Ring POM (Polyoxymethylene)
Material – Tubing Seal NBR (Nitrile Rubber)
Material – Tubing Clamp Component High-alloy stainless steel
