SPARECRUX is NOT an authorized distributor for FESTO

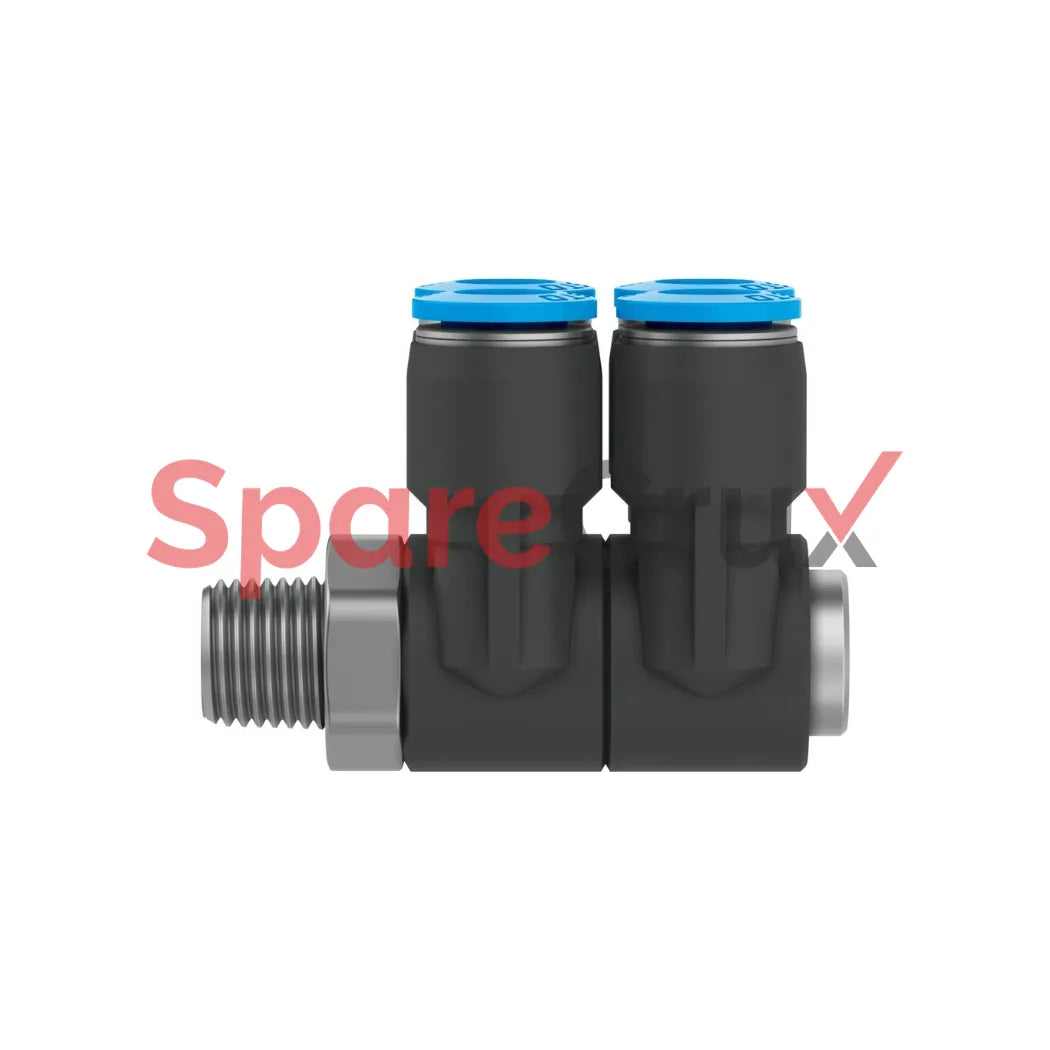

153235 | FESTO | Multiple Distributor QSLV4-1/4-8

₹ 742.30

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

153235

Fabricant d'équipement d'origine

FESTO

Description
Parameter Specification
Size Standard
Nominal size 4.1 mm
Type of seal on screwed plug Coating
Mounting position Optional
Design Push-pull principle
Size of pack 1
Operating pressure (complete temp. range) -0.095 MPa ... 0.6 MPa
Operating pressure (complete temp. range) -0.95 bar ... 6 bar
Operating pressure (complete temp. range) -13.775 psi ... 87 psi
Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure -0.95 bar ... 14 bar
Temperature-dependent operating pressure -13.775 psi ... 203 psi
Note on operating pressure Water: max. 0.6 MPa at 0 - 50 °C
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance class (CRC) 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -10 °C ... 80 °C
Nominal torque 9 Nm
Tolerance for nominal tightening torque ± 20%
Product weight 56 g
Number of outputs 4
Number of supply lines 1
Pneumatic connection, port 1 Male thread R1/4
Pneumatic connection, port 2 For tubing outside diameter of 8 mm
Colour of release ring Blue
Note on materials RoHS-compliant
Material housing PBT
Material hollow bolt Nickel-plated brass
Material release ring POM
