SPARECRUX is NOT an authorized distributor for FESTO

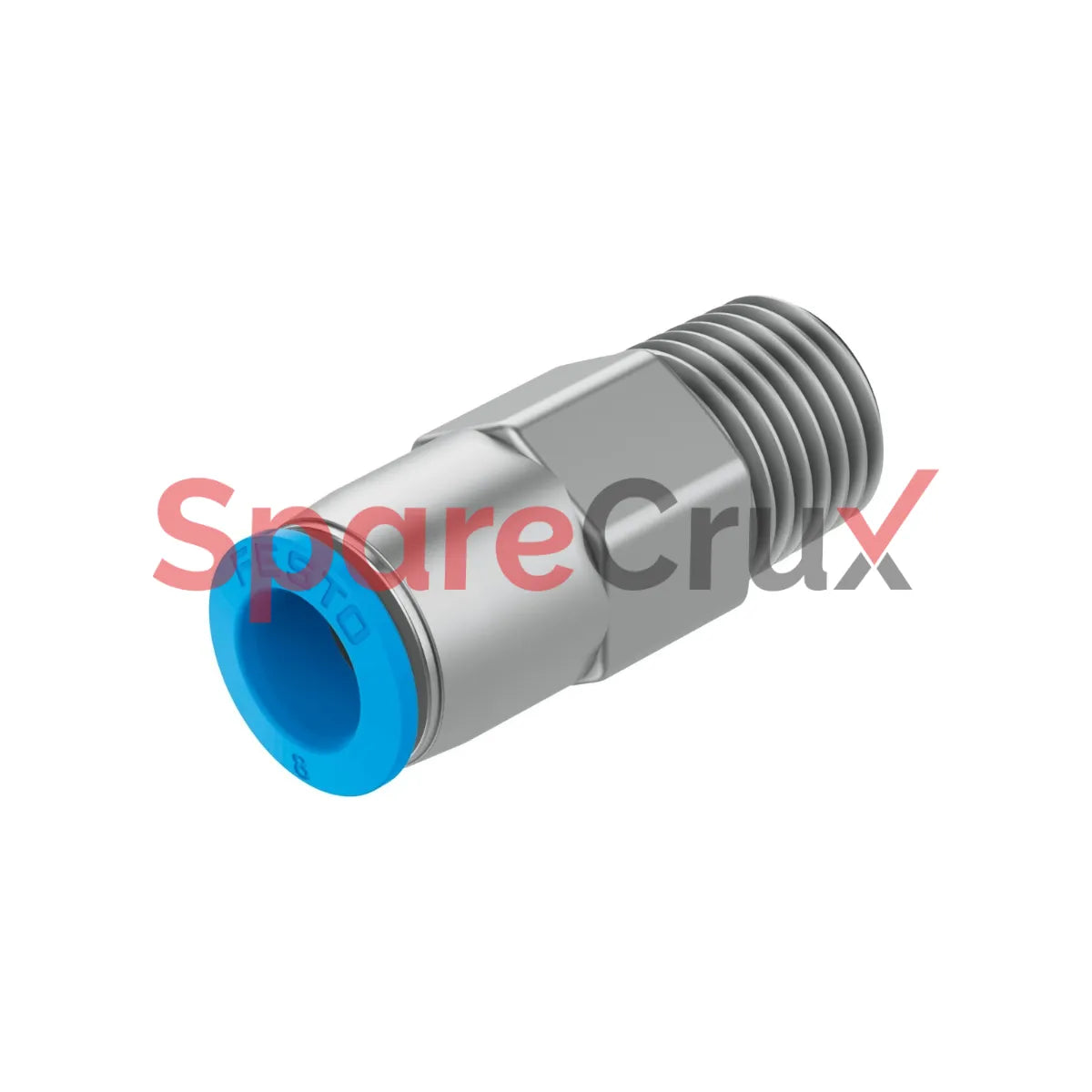

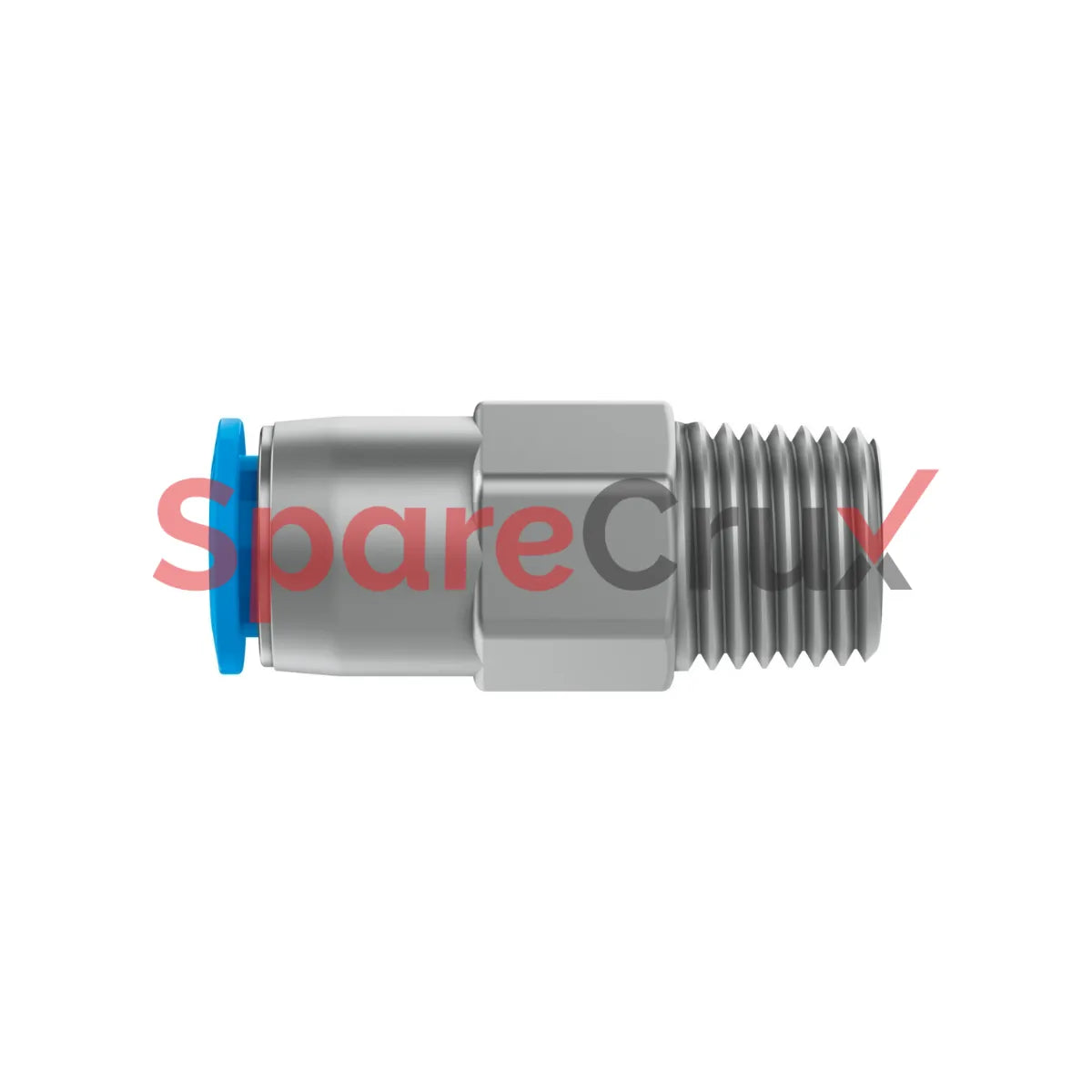

153423 | FESTO | Push-in Fitting, Self-sealing QSK-1/4-8

₹ 323.86

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

153423

Fabricant d'équipement d'origine

FESTO

Description
Parameter Value
Size Standard
Nominal size 4.3 mm
Approved tubing types PAN-, PAN-MF-, PAN-R-, PAN-V0-, PEN-, PFAN-, PLN-, PTFEN-, PUN-, PUN-CM-, PUN-DUO-, PUN-H-, PUN-H-DUO-, PUN-S-, PUN-S-DUO-, PUN-V0-
Tubing insertion depth 18.5 mm
Type of seal on screwed plug Coating
Mounting position Optional
Design Straight design, Push-pull principle
Size of pack 1
Operating pressure (complete range) -0.095 MPa ... 0.6 MPa-0.95 bar ... 6 bar-13.775 psi ... 87 psi
Temp.-dependent operating pressure -0.095 MPa ... 1.4 MPa-0.95 bar ... 14 bar-13.775 psi ... 203 psi
Operating medium Compressed air (ISO 8573-1:2010 [7:-:-])
Lubricated operation Possible
Corrosion resistance class (CRC) 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -10 °C ... 80 °C
Nominal torque 9 Nm
Torque tolerance ± 20%
Product weight 22.5 g
Type of mounting External hexagon, size 14 mm
Pneumatic connection, port 1 Male thread R1/4
Pneumatic connection, port 2 For tubing with outside diameter of 8 mm
Colour of release ring Blue
Note on materials RoHS-compliant
Material - Housing Brass, nickel-plated
