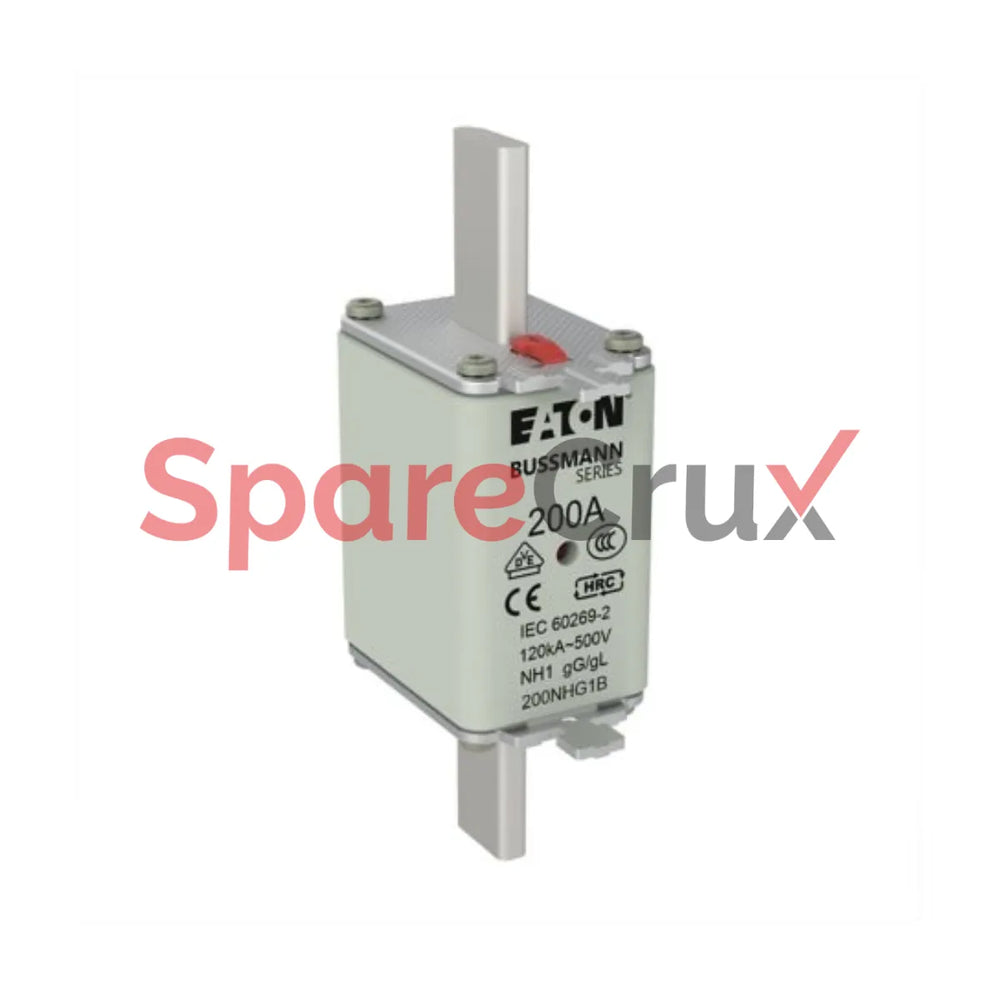

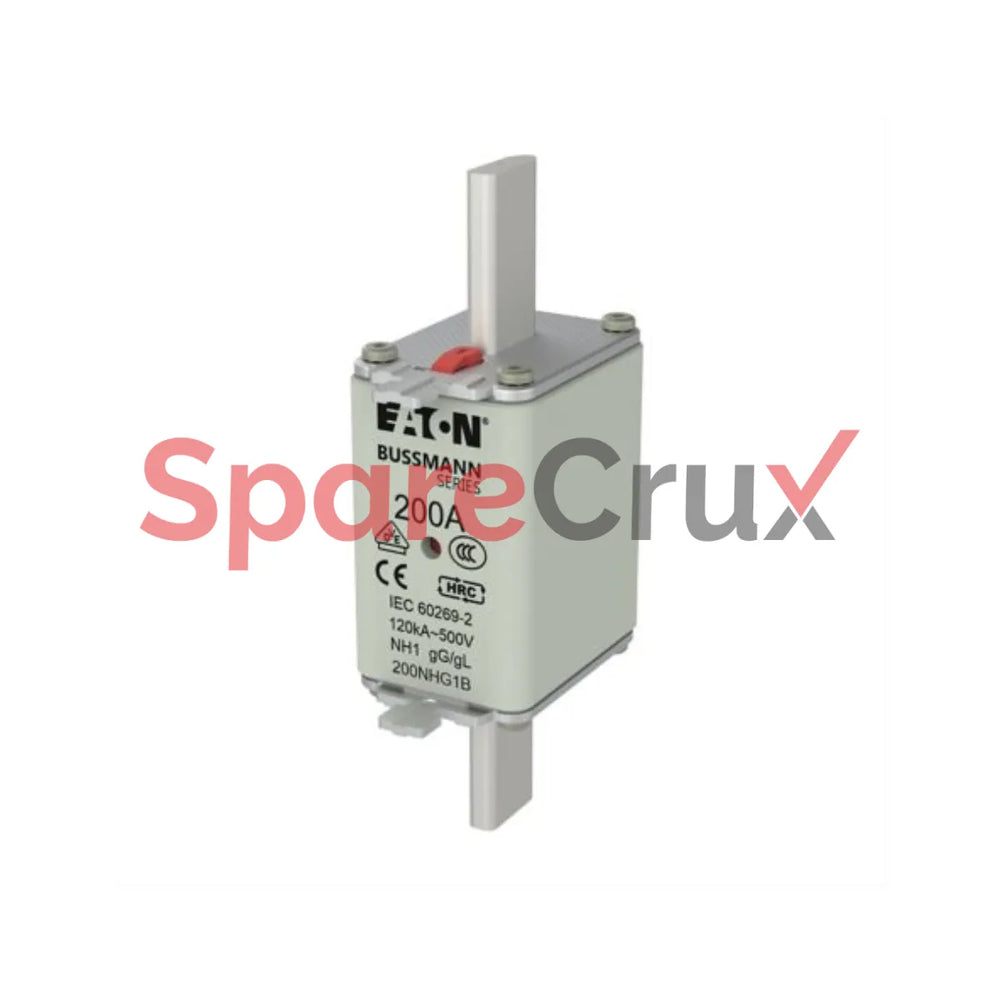

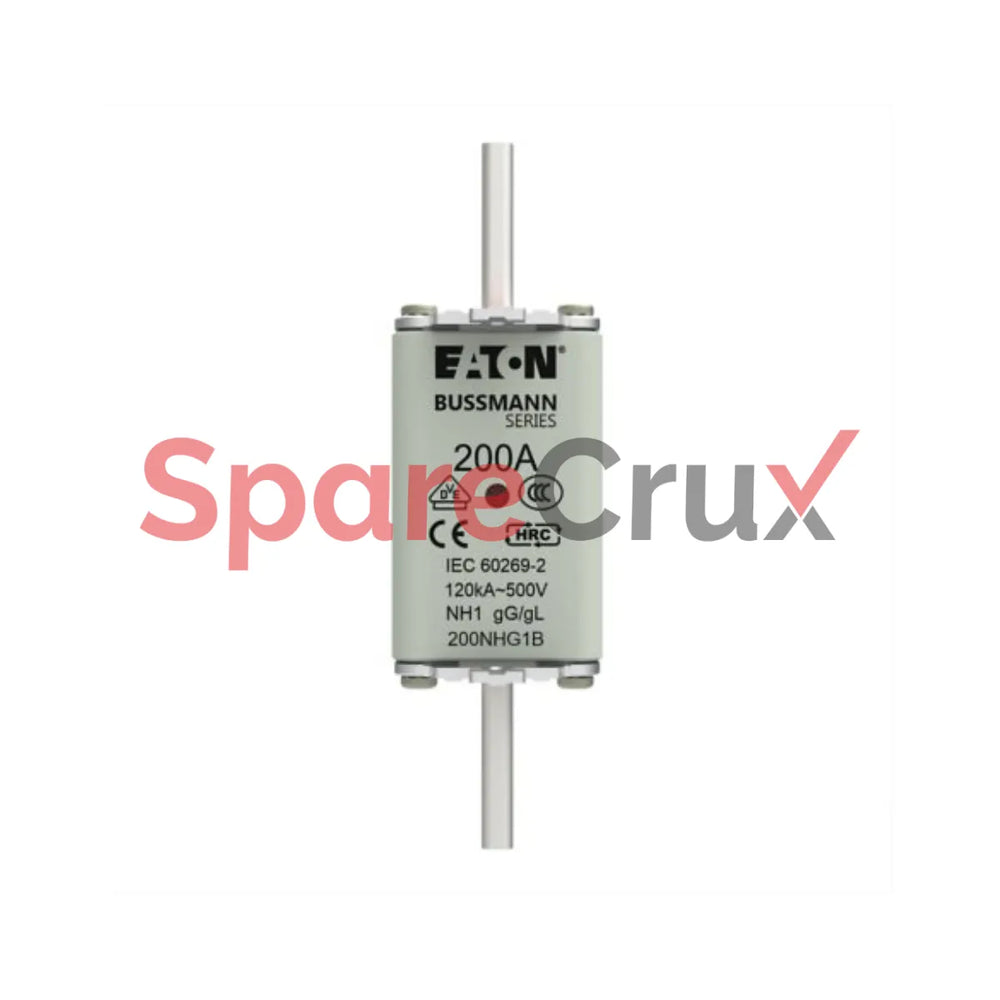

200NHG1B | BUSSMANN | NH FUSE 200A 500V GG/GL SIZE 1

₹ 2,349.04

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

200NHG1B

Fabricant d'équipement d'origine

BUSSMANN

Description

Specification Details
Brand / Series Eaton Bussmann, Low Voltage NH Fuse
Catalog Number / Model 200NHG1B
Model Code NH FUSE 200A 500V GG/GL SIZE 1
UPC 051712626033
EAN 5027590467209
Fuse Type / Category Low Voltage NH Fuse, Square Body with Knife Blade Contacts, NH1
Rated Current 200 A
Rated Voltage AC 500 V
Current Type AC
Class / Utilization Category Class gG/gL, gL/gG (cable protection/equipment protection)
Breaking Capacity / Interrupt Rating 120 kA / 120 kAIC
Rated Switching Capacity 120 kA
Fuse Indicator Combination fuse status indicator
Insulated Metal Gripping Lugs (IMGL) No
Connection Blade end
Construction / Fuse Size NH1, Square Body
Fuse Shape Knife blade contacts, Square body
Length / Depth 135 mm
Height 63 mm
Width 40 mm
Weight 407.333 g
Material / Contact Material Ceramic body
Fitted With Metal gripping lugs
Accessory / Spare Parts SDL-1 Solid link, FEH Fuse extraction handle, SD12-SK Shroud kit, SD00-PB 2-phase barriers, TD1-IP20 Triple pole protection kit
Packaging Type / Quantity Standard, 3 pieces
Suitable For SD1-D Single pole NH Fuse base, Microswitch 170H0236, EBH Size 00 to 4 Horizontal fuse switch-disconnectors, TD1-D Triple pole NH Fuse base
Voltage Type AC
Special Features Live gripping lug
Application Industrial
Compliances / Certifications CE Marked, RoHS Compliant, IEC 60269-1, IEC 60269-2, DIN 43620
