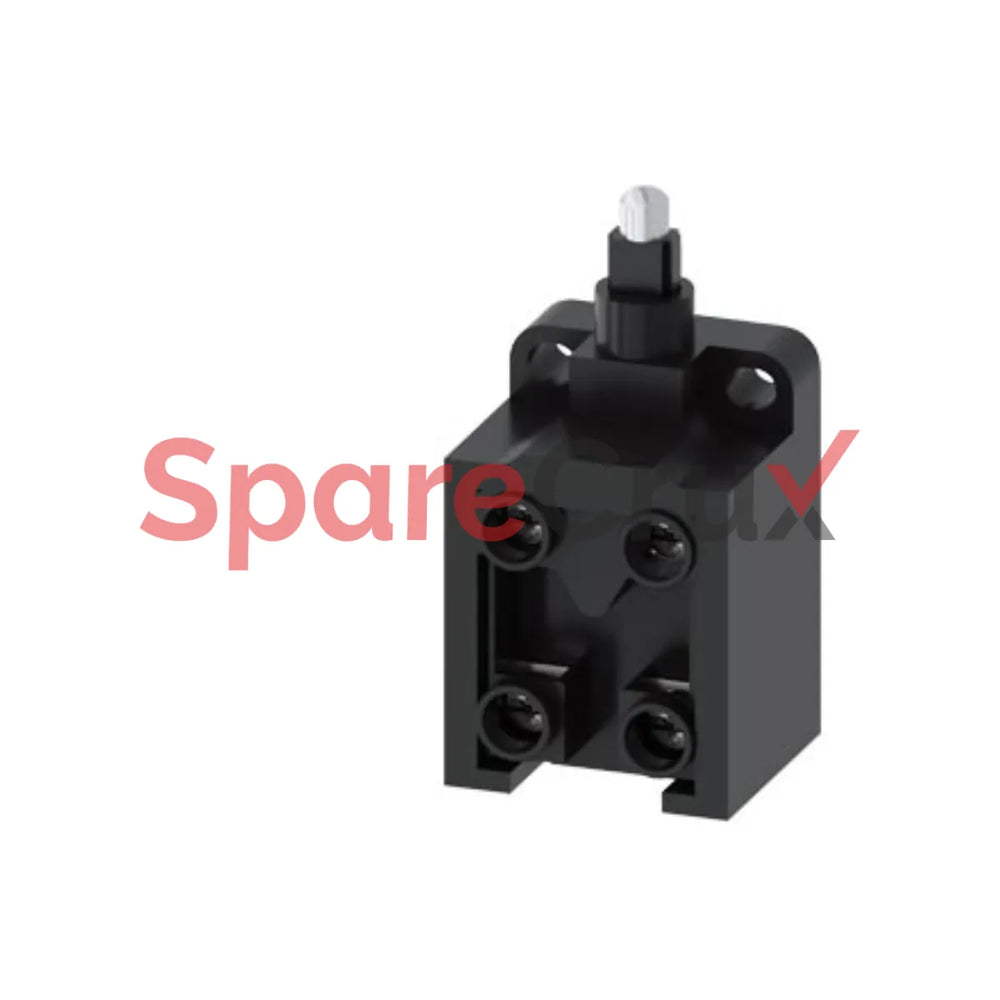

3SE5250-0BC05 | SIEMENS | Position Switch Plastic Enclosure Open Type 30 mm 1 NO/1 NC

₹ 6,929.38

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

3SE5250-0BC05

Fabricant d'équipement d'origine

SIEMENS

Description
Product Brand Name SIRIUS
Product Designation Open-type Position Switches
Product Type Designation 3SE5
Product Function Positive Opening Yes
Insulation Voltage (Rated) 400 V
Degree of Pollution Class 3
Surge Voltage Resistance (Rated) 6 kV
Protection Class (IP) IP20 (conductor connected and clamping screw screwed in)
Thermal Current 10 A
Material of Enclosure (Switch Head) Plastic
Reference Code (IEC 81346-2) B
Continuous Current of C Characteristic MCB 1 A (for short-circuit current < 400 A)
Continuous Current of Quick DIAZED Fuse Link 10 A (for short-circuit current < 400 A)
Continuous Current of DIAZED Fuse Link gG 6 A
Active Principle Mechanical
Repeat Accuracy 0.05 mm
Substance Prohibitance (Date) 07/01/2006
Weight 0.044 kg
Minimum Actuating Force (Directions of Actuation) 20 N
Length of Sensor 59.2 mm
Width of Sensor 30 mm
