SPARECRUX is NOT an authorized distributor for SICK SENSORS

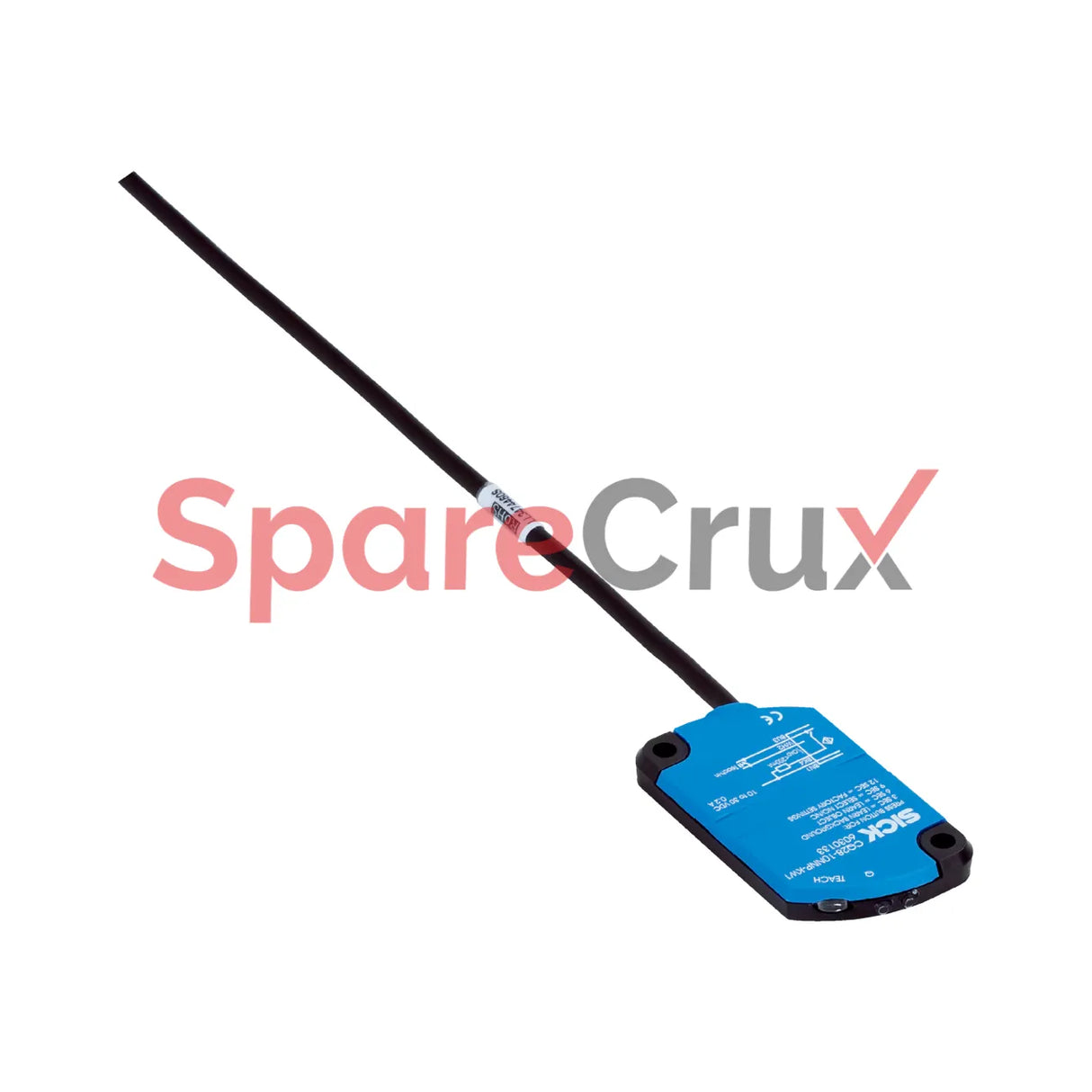

6030132 | SICK SENSORS | CQ28-10NPP-KW1 Capacitive Proximity Sensors

₹ 8,224.80

  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

6030132

Fabricant d'équipement d'origine

SICK SENSORS

Description

Housing Rectangular
Dimensions (W x H x D) 28 mm x 46 mm x 5.5 mm
Sensing range Sn 1 mm ... 10 mm
Safe sensing range Sa 7.2 mm
Installation type Non-flush
Switching frequency 10 Hz
Connection type Cable, 4-wire, 2 m 1)
Switching output PNP
Switching output detail PNP
Output function NC or NO
Supply voltage 10 V DC ... 30 V DC
Ripple ≤ 10 %
Voltage drop ≤ 2.5 V DC 1)
Current consumption 12 mA 2)
Time delay before availability ≤ 300 ms
Reproducibility

≤ 5 % 3)

 4)

Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2 5)
Continuous current Ia ≤ 200 mA
Cable material PVC
Conductor size 0.14 mm²



SICK SENSORS 6030132 CQ28-10NPP-KW1 Capacitive Proximity Sensors
SICK SENSORS

6030132 | SICK SENSORS | CQ28-10NPP-KW1 Capacitive Proximity Sensors

₹ 8,224.80
Housing Rectangular
Dimensions (W x H x D) 28 mm x 46 mm x 5.5 mm
Sensing range Sn 1 mm ... 10 mm
Safe sensing range Sa 7.2 mm
Installation type Non-flush
Switching frequency 10 Hz
Connection type Cable, 4-wire, 2 m 1)
Switching output PNP
Switching output detail PNP
Output function NC or NO
Supply voltage 10 V DC ... 30 V DC
Ripple ≤ 10 %
Voltage drop ≤ 2.5 V DC 1)
Current consumption 12 mA 2)
Time delay before availability ≤ 300 ms
Reproducibility

≤ 5 % 3)

 4)

Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2 5)
Continuous current Ia ≤ 200 mA
Cable material PVC
Conductor size 0.14 mm²
