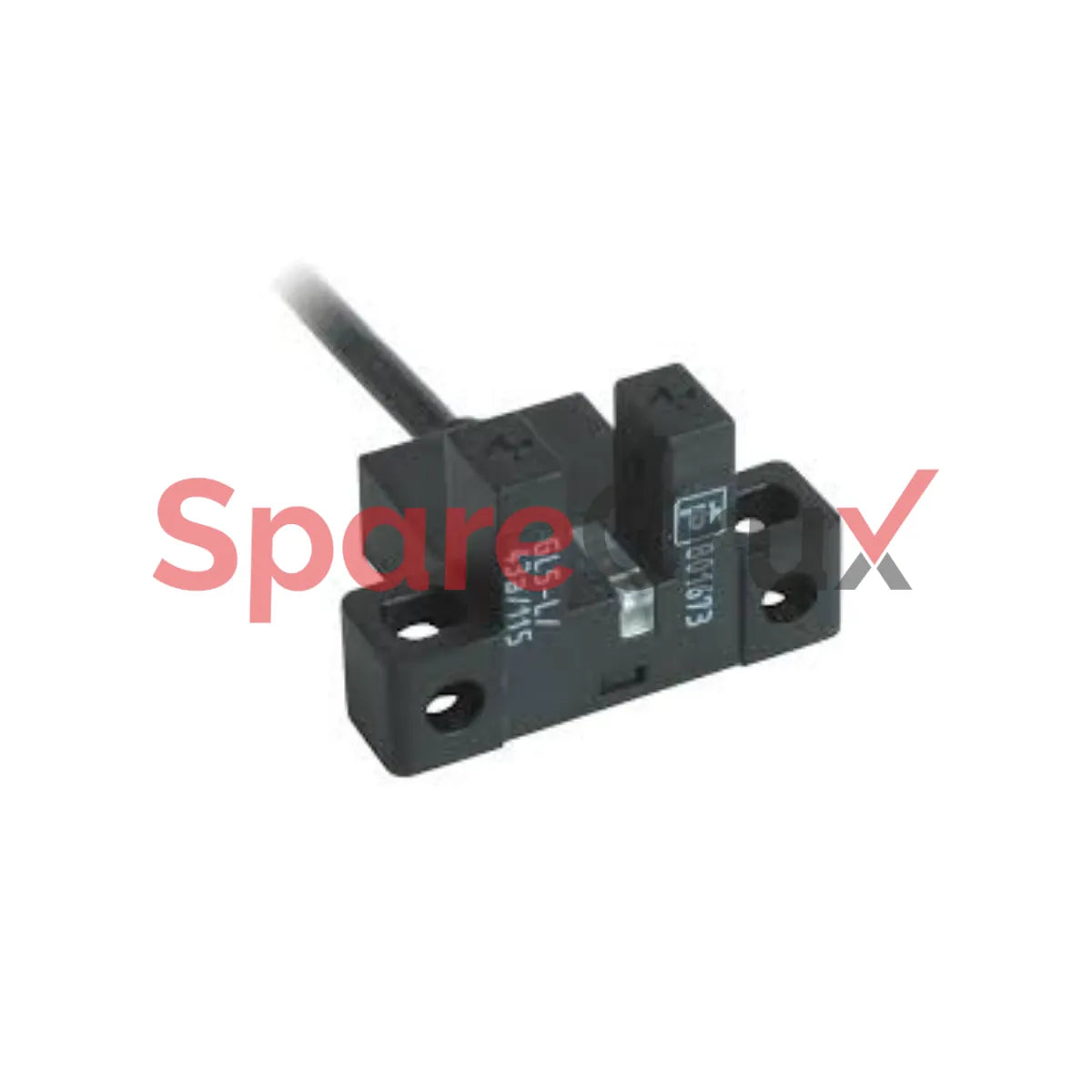

801673 | PEPPERL+FUCHS | Photoelectric Slot Sensor

₹ 2,927.00

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

801673

Fabricant d'équipement d'origine

PEPPERL+FUCHS

Description

Parameter Specification
Light source IRED
Light type Infrared, continuous light, 940 nm
Target size 0.8 x 1.8 mm
Slot width 5 mm
Slot depth 8.5 mm
Ambient light limit 1000 Lux
Switching type Light/dark on
Signal output 2 PNP complementary, overvoltage protected
Switching voltage max. 30 V DC
Switching current max. 50 mA, resistive load
Voltage drop Ud max. 0.2 V at 10 mA, max. 0.6 V at 50 mA
Switching frequency f max. 5 kHz
Response time 40 µs Light beam not interrupted, 80 µs Light beam interrupted
Degree of protection IP50
Connection 2 m cable, 4 x 0.08 mm², PVC
Material Housing: PBT
Mass 25 g
Tightening torque, fastening screws 0.6 Nm
Dimensions Height: 26 mm, Width: 18.5 mm, Length: 15.5 mm
Cable length 2 m
