SPARECRUX is NOT an authorized distributor for FESTO

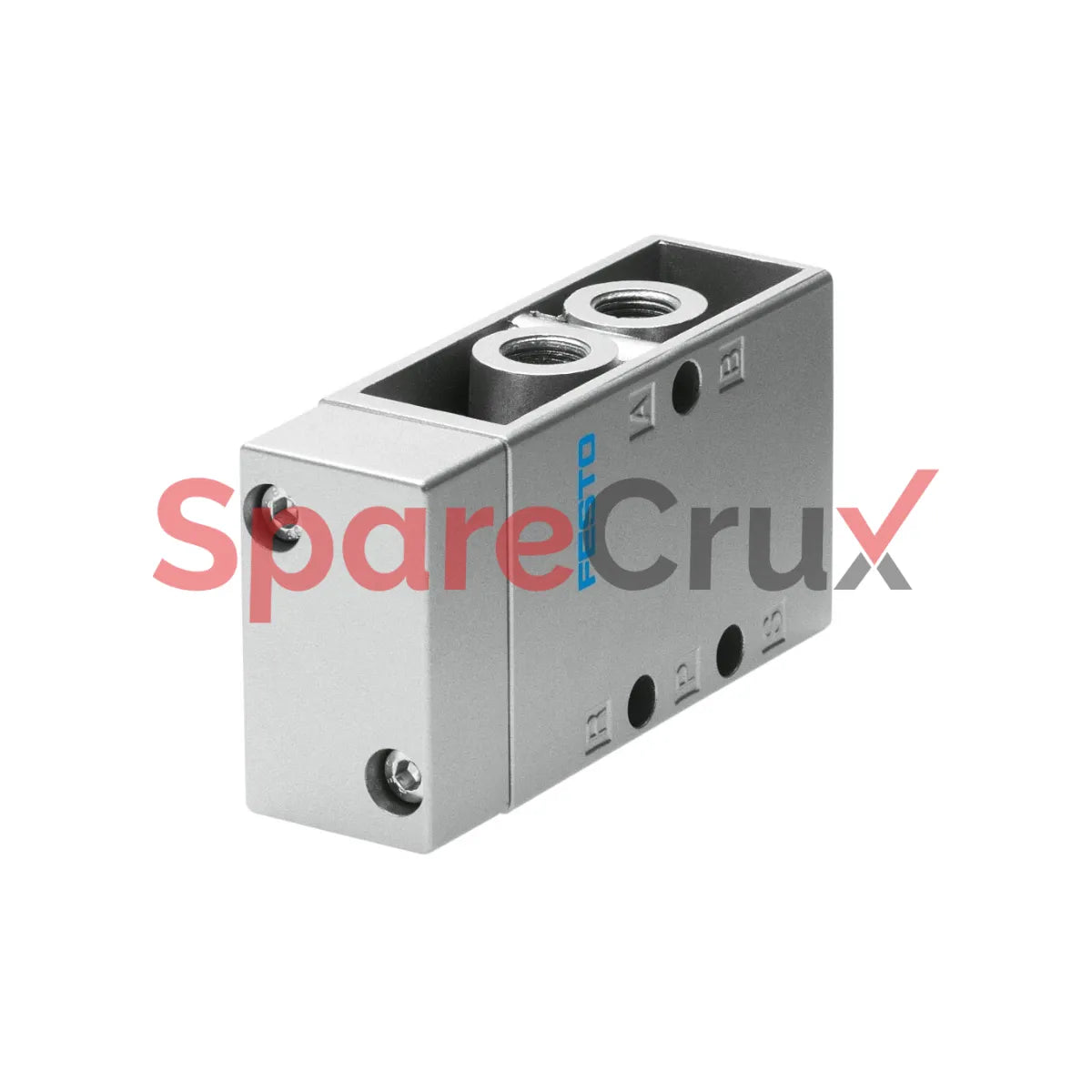

9199 | FESTO | Pneumatic Valve VL-5-1/4

₹ 2,257.29

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

9199

Fabricant d'équipement d'origine

FESTO

Description

Specification Details
Valve function 5/2-way, monostable
Type of actuation Pneumatic
Construction width 30.5 mm
Standard nominal flow rate 800 l/min (standardised to DIN 1343)
Pneumatic working port G1/4
Operating pressure 0 MPa to 0.8 MPa (0 bar to 8 bar)
Design Poppet seat
Type of reset Mechanical spring
Degree of protection IP65
Nominal size 7 mm
Grid dimension 32 mm
Exhaust-air function With flow control option
Sealing principle Soft
Mounting position Optional
Type of piloting Direct
Pilot air supply External
Flow direction Non-reversible
Symbol 00991001
Lap
Underlap
Pilot pressure 0.12 MPa to 1 MPa (1.2 bar to 10 bar)
Switching time off 11 ms
Switching time on 7 ms
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (then always required)
Corrosion resistance class (CRC) 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Storage temperature -20 °C to 60 °C
Media temperature -10 °C to 60 °C
Pilot medium Compressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature -10 °C to 60 °C
Product weight 220 g
Type of mounting With through-hole
Pilot air port 14 G1/8
Pneumatic connections, ports 1-5 G1/4 (all ports)
Note on materials RoHS-compliant
Material seals NBR, TPE-U (PU)
Material housing Die-cast aluminium
