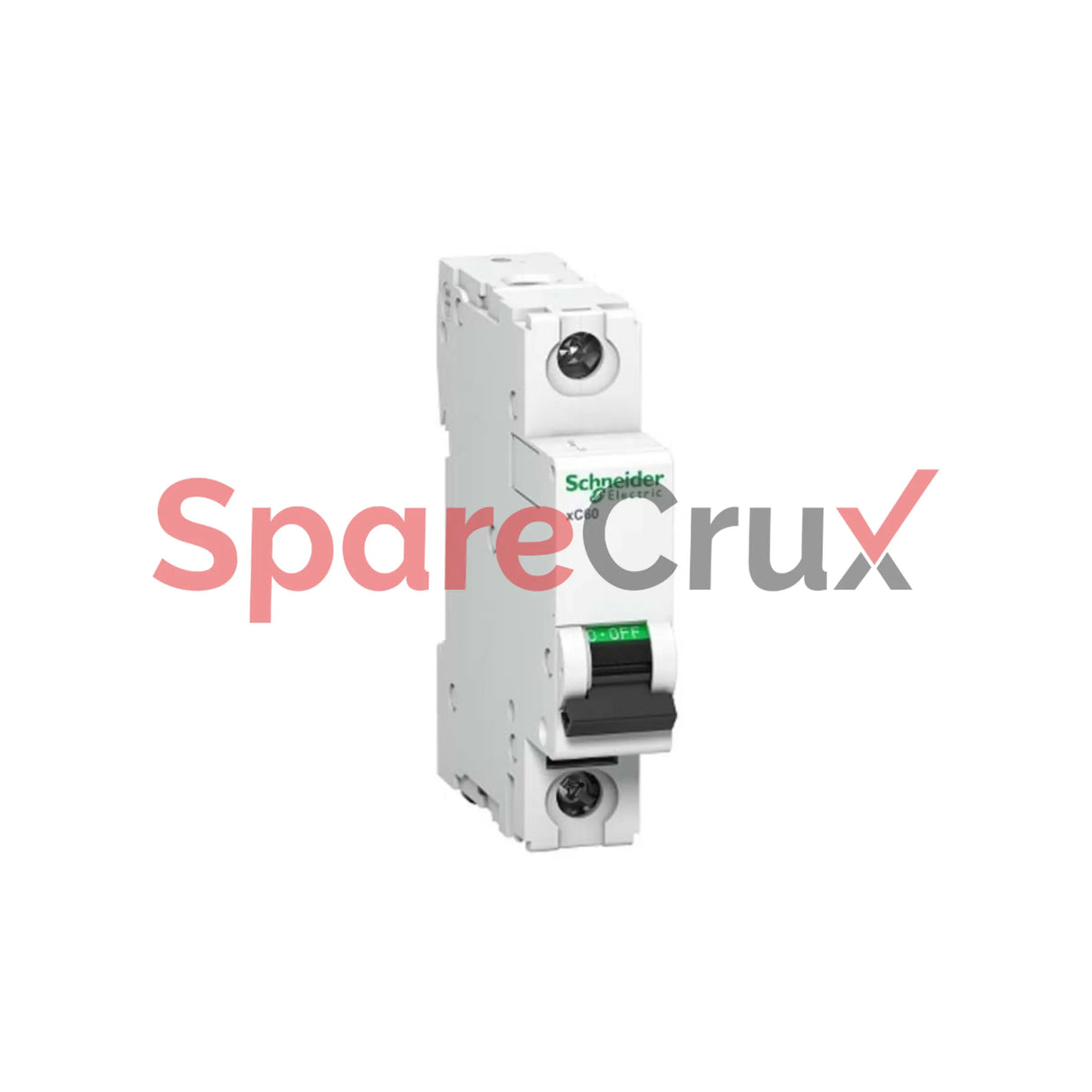

A9N1P03C | SCHNEIDER ELECTRIC | Acti9 xC60 Miniature Circuit Breaker, 1 Pole, 3A, C Curve, 10kA

₹ 308.27

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

A9N1P03C

Fabricant d'équipement d'origine

SCHNEIDER ELECTRIC

Description

Series Acti9 xC60
Poles 1‑Pole (Single Pole)
Rated Current (In) 3 A
Tripping Curve C‑Curve (thermal‑magnetic)
Rated Operational Voltage (Ue) 220‑240 V AC; up to 60 V DC
Breaking Capacity (Icu) 15 kA (IEC 60947‑2); 10 kA (IEC 60898‑1)
Service Breaking Capacity (Ics) 15 kA @ DC; ~7.5 kA @ AC
Magnetic Trip Limit ≈ 8 × In ± 20 %
Rated Insulation Voltage (Ui) 500 V AC
Impulse Withstand Voltage (Uimp) 6 kV
Mounting 35 mm DIN‑rail clip‑on
Terminal Type Screw‑clamp terminals, reversible line/load
Dimensions (H×W×D) 85 × 18 × 77.5 mm (2 pitches × 9 mm width)
Weight ≈ 0.115 kg
Electrical Durability ≈ 20,000 operations
Operating Temperature −30 °C to +70 °C
Protection Class IP20 (front)
Standards & Certifications IEC 60947‑2, IEC 60898‑1; IS/IEC 60898; Green Premium; RoHS/REACh compliant
